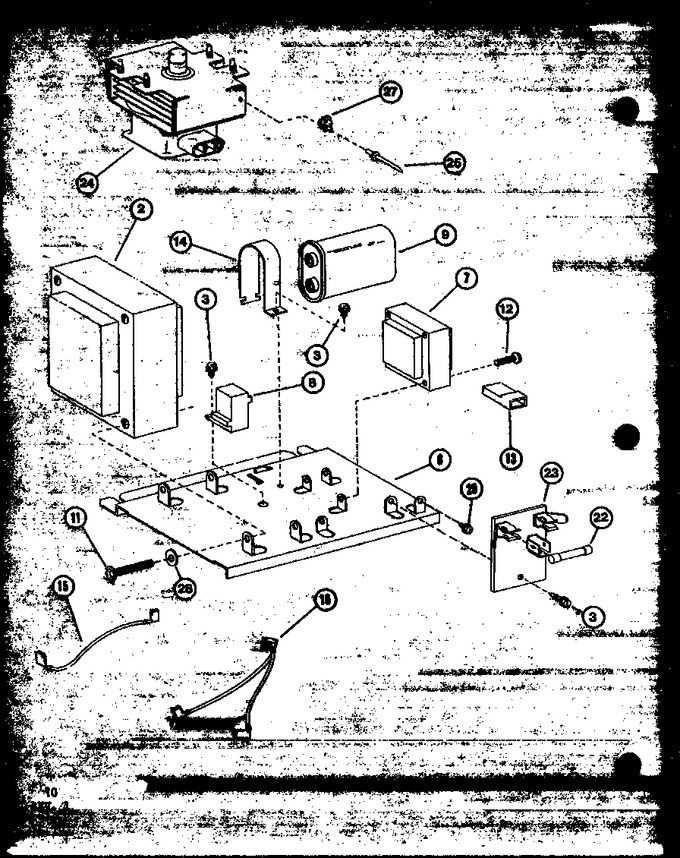

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	D7498502		Transformer		Appelez-nous	-
3	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
6	D7351805		Mtg Plate Trans		Appelez-nous	-
7	C8807801		Transformer-filament		Appelez-nous	-
8	B8329801		Kit, Diode		Appelez-nous	-
9	59001651		Capacitor   (Replaces: D8547901)				$ 43.15
11	M0254452		Screw		Appelez-nous	-
12	M0253509		Screw		Appelez-nous	-
13	M0325301		Insulator, Term. K		Appelez-nous	-
14	A3257003		Strap-capacitor		Appelez-nous	-
15	D7365120		Hv Wire		Appelez-nous	-
15	D7292686		Jumper Wire		Appelez-nous	-
15	D7292618		Jumper Wire		Appelez-nous	-
16	D7292672		Jumper Wire		Appelez-nous	-
22	ABC20		Fuse 20 Amp K   (Replaces: M0805101)			Immediately	$ 10.31
23	C8845901		Terminal Board K		Appelez-nous	-
24	C8761713		Magnetron		Appelez-nous	-
25	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
27	B5795304		Fuse, Thermal		Appelez-nous	-
28	M0272805		Lock Washer		Appelez-nous	-
29	M0218116		Screw		Appelez-nous	-
