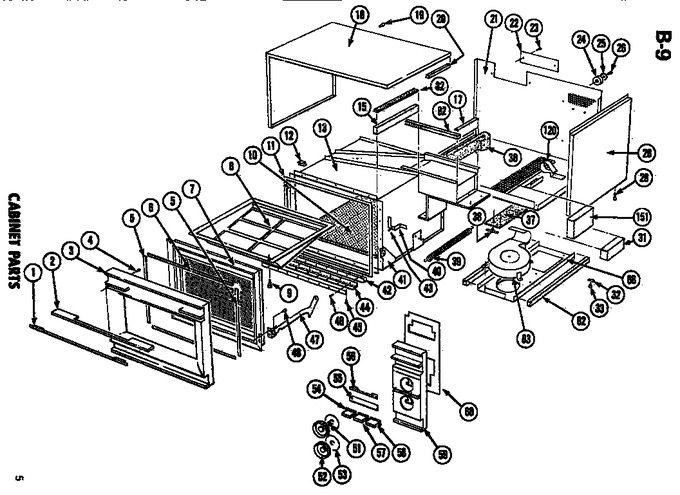

01 - Cabinet


02 - Electrical Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5604801		Insert		Appelez-nous	-
2	D3964801		Handle		Appelez-nous	-
3	D3964601		Door		Appelez-nous	-
4	M0234117		Screw		Appelez-nous	-
5	D7141302		Gasket, Inner Door Panel, R.h.		Appelez-nous	-
5	D7141304		Gasket Right A		Appelez-nous	-
6	D7141303		Gasket Bottom A		Appelez-nous	-
7	C3605601		Weldment, Inner Door		Appelez-nous	-
8	D3991401		Grease Shield		Appelez-nous	-
9	M0211516		Screw A K		Appelez-nous	-
10	D7089602		Oven Tray Kit		Appelez-nous	-
11	C3637202		Gasket		Appelez-nous	-
12	M0114901		Clip		Appelez-nous	-
13	D3997401		Oven, Weldment		Appelez-nous	-
15	A3030321		Gasket		Appelez-nous	-
17	A3030316		Gasket		Appelez-nous	-
18	C3673001		Wrapper, Outer Case		Appelez-nous	-
19	M0211516		Screw A K		Appelez-nous	-
20	A3030316		Gasket		Appelez-nous	-
21	D3965101		Base Pan Weld		Appelez-nous	-
22	A3092001		Panel		Appelez-nous	-
23	M0211516		Screw A K		Appelez-nous	-
24	M0011001		Foot		Appelez-nous	-
25	M0270501		Washer		Appelez-nous	-
26	M0221132		Screw		Appelez-nous	-
28	C3673101		Access Panel		Appelez-nous	-
29	M0211516		Screw A K		Appelez-nous	-
30	B0572826		Insulation		Appelez-nous	-
31	B0572827		Insulation Ft. K		Appelez-nous	-
32	M0320901		Terminal		Appelez-nous	-
33	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
34	M0270501		Washer		Appelez-nous	-
35	M0011001		Foot		Appelez-nous	-
36	M0221132		Screw		Appelez-nous	-
37	A3094901		Filter		Appelez-nous	-
38	M0111203		Clip		Appelez-nous	-
39	M0775001		Spring		Appelez-nous	-
40	A3125601		Reset Arm		Appelez-nous	-
41	B5642701		Bracket, Counterbalance, R.h.		Appelez-nous	-
41	B5642702		Bracket, Counterbalance, L.h.		Appelez-nous	-
42	A3127102		Shim		Appelez-nous	-
43	M0560002		Support		Appelez-nous	-
44	B5603201		Hinge Door		Appelez-nous	-
45	M0227501		Screw		Appelez-nous	-
46	M0214503		Screw		Appelez-nous	-
47	B5642502		Counter Balance Rh		Appelez-nous	-
47	B5642501		Counter Balance Lh		Appelez-nous	-
48	M0228016		Screw		Appelez-nous	-
51	M0117001		Clip		Appelez-nous	-
52	D7028701		Knob A		Appelez-nous	-
53	B5635605		Escutcheon K		Appelez-nous	-
