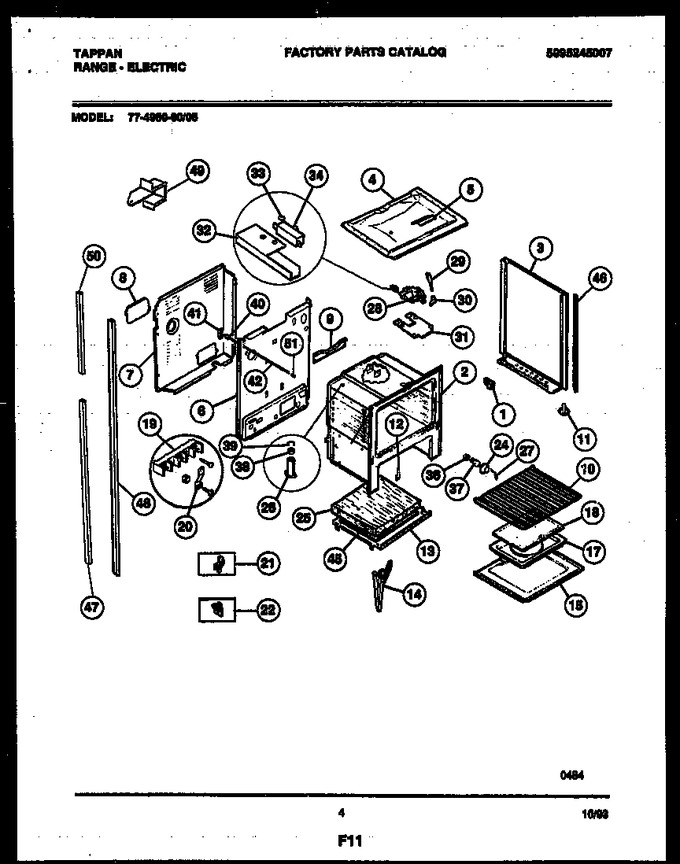

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer, B/s (8) |
|
$ 3.62 | |||||
| 3 | 5303269545 | Panel Bodyside Lh (almond) |
|
- | |||||
| 4 | 5303271658 | Burner Box |
|
- | |||||
| 5 | 08067757 | Cover Plate |
|
- | |||||
| 6 | 3203082 | Back-main |
|
- | |||||
| 7 | 3203549 | Shield-lwr. Wall |
|
- | |||||
| 8 | 3203405 | Cvr.-lwr. Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 5303281625 | Rack-oven (2) |
|
- | |||||
| 11 | 5303203397 | Screw, Leveling (4) |
|
$ 14.49 | |||||
| 12 | 3131570 | Cvr. Hng. Cutout (2) |
|
$ 7.35 | |||||
| 13 | 3200825 | Shield-wool Lwr |
|
- | |||||
| 14 | 316007002 | Chanl Dr Hng (2) |
|
$ 244.07 | |||||
| 15 | 3203540 | Bottom Oven |
|
- | |||||
| 17 | 5303013568 | Broiler Pan |
|
- | |||||
| 18 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 19 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20 | 5301145190 | Grnd Strap |
|
- | |||||
| 21 | 08067754 | Clip-therm Bulb (2) |
|
- | |||||
| 22 | 3051162 | Glide-drwr (2) |
|
Immediately | $ 8.22 | ||||
| 24 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 25 | 3200847 | Insul-btm |
|
- | |||||
| 26 | 3051344 | Tube-oven Vent |
|
- | |||||
| 27 | 3204585 | Wire Glass Retainer |
|
- | |||||
| 28 | 5303015361 | Latch-door |
|
- | |||||
| 29 | 5303131357 | Handle-latch |
|
$ 37.33 | |||||
| 30 | 3203218 | Knob-latch |
|
- | |||||
| 31 | 3051413 | Shield-latch |
|
- | |||||
| 32 | 3131593 | Shield Bi Mtg Catch |
|
- | |||||
| 33 | 08067776 | Fstnr., Push On (3) |
|
- | |||||
| 34 | 5303269499 | Sw Latching |
|
$ 20.53 | |||||
| 36 | 3014073 | Socket Oven Lite |
|
- | |||||
| 37 | 40A15 | Lite Bulb-oven (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 38 | 08067810 | Filter-catalyst |
|
- | |||||
| 39 | 08010606 | Retain-catalyst |
|
- | |||||
| 40 | 5303202622 | Switch, Door |
|
- | |||||
| 41 | 5303131289 | Brkt-lite Sw |
|
- | |||||
| 42 | 5303209316 | Rod Light |
|
- | |||||
| 45 | 3200848 | Shield-heat Lwr |
|
- | |||||
| 46 | 5303051326 | Trim - Vert B/s (2) |
|
- | |||||
| 47 | 5303269933 | Tube Post Lh |
|
- | |||||
| 48 | 5303269934 | Tube Post Rh |
|
- | |||||
| 49 | 3203582 | Shield-rear Wall |
|
- | |||||
| 50 | 5303269935 | Tube-corner Extn-lh |
|
- | |||||
| 51 | 5303285692 | Cover-rod End |
|
- | |||||
| *90464 | 08067978 | Stud Spacer |
|
- | |||||
| *90464 | 5303288460 | Nut Leveling (4) |
|
$ 27.14 | |||||
| 27A | 3200833 | Insul Wrap (non-illustrated) |
|
- | |||||
| 27B | 3204582 | Insul-back (non-illustrated) |
|
- | |||||
| 27C | 3131304 | Insul. Top (non-illustrated) |
|
- | |||||
| 27D | 5303051099 | Nut-hex Brass (6) (non-illustrated) |
|
- | |||||
| 27E | 3203550 | Plug Buttom (non-illustrated) |
|
Immediately | $ 15.22 | ||||
| 27F | 3051299 | Shield-trim Splasher (non-illustrated) |
|
- | |||||
| 27G | 5303206618 | Bracket Mtg Cable |
|
- | |||||
| 27H | 3015418 | Shield-wire |
|
- | |||||
| 30A | 5303285179 | Screw Set-latch Knob |
|
$ 13.46 | |||||
| 3A | 5303269543 | Panel-bodyside Rh (almond) |
|
- | |||||
| 45A | 3131903 | Bumper |
|
$ 55.36 | |||||
| 48A | 3200834 | Shield-heat B/s (2) (non-illustrated) |
|
- | |||||
| 48B | 3200846 | Fastener-edge Mount (2) (non-illustrated) |
|
- | |||||
| 48C | 3934056 | Anti-tip Kit (non-illustrated) |
|
- | |||||
| 50A | 19100250004 | Wiring Diagram-(not For Purchase) (non-illustrated) |
|
- |
