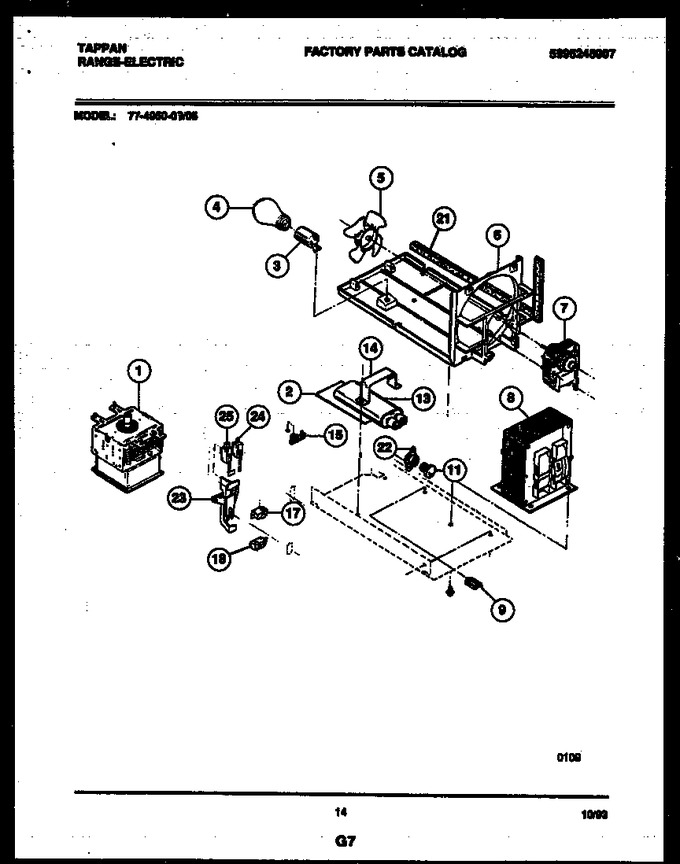

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206781 | Magnetron |
|
- | |||||
| 2 | 5303270053 | Insulator-capacity |
|
- | |||||
| 3 | 5303014070 | Socket-light |
|
- | |||||
| 4 | 5308037902 | Light Bulb |
|
- | |||||
| 5 | 5303269834 | Fan Blade |
|
- | |||||
| 6 | 5303012194 | Duct-air (fan) |
|
- | |||||
| 7 | 5303922053 | Motor-fan |
|
- | |||||
| 8 | 5308037626 | Transformer |
|
- | |||||
| 9 | 5308037677 | Fstnr - Wire Clip (3) |
|
- | |||||
| 11 | 5303200606 | Fuse 20 Amp. |
|
- | |||||
| 13 | 5303269608 | Capacitor-high Voltage |
|
- | |||||
| 14 | 5303013771 | Retainer-capacitor |
|
- | |||||
| 15 | 5303091280 | Fuse-thermal-red |
|
- | |||||
| 17 | 5303203636 | Switch, Interlock |
|
- | |||||
| 18 | 5303203636 | Switch, Interlock |
|
- | |||||
| 21 | 5303017864 | Seal Foam |
|
- | |||||
| 22 | 5308012055 | Socket-fuse |
|
- | |||||
| 23 | 317000702 | Bracket-dual Switch |
|
- | |||||
| 24 | 317005104 | Switch-door Sense |
|
- | |||||
| 25 | 317005103 | Switch-monitor |
|
- | |||||
| *90482 | 3091254 | Stud-clinch Grd |
|
- | |||||
| *90482 | 317005011 | Wiring Diagram-(not For Purchase) |
|
- |
