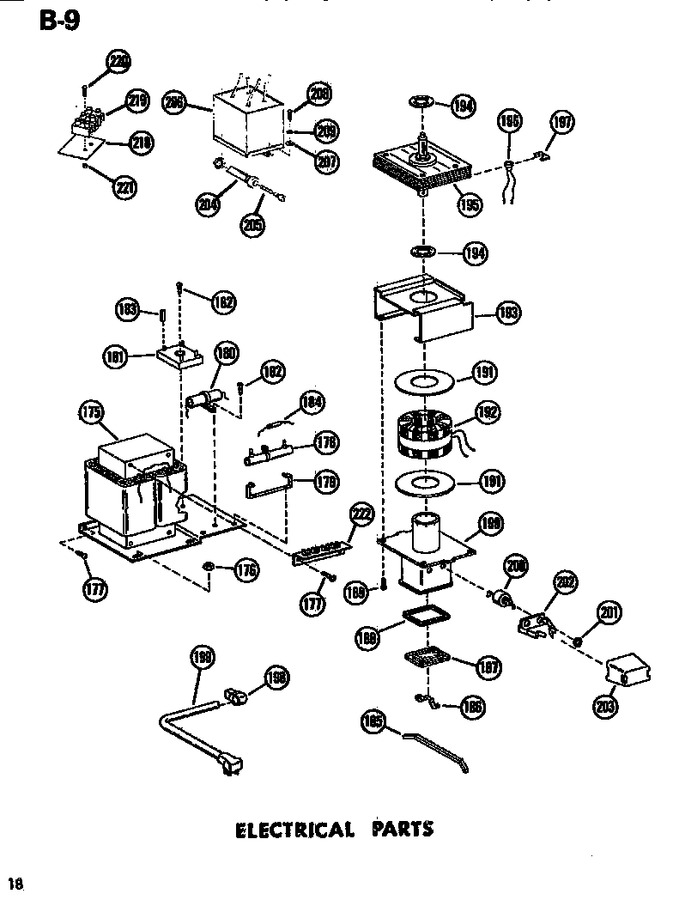

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
175	D7151201		Transformer		Appelez-nous	-
176	WP487939		Nut   (Replaces: M0282015)				$ 6.95
177	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
178	M0305101		Resistor,adj		Appelez-nous	-
179	A3165001		Brkt-adj-resistor		Appelez-nous	-
180	M0300201		Capacitor		Appelez-nous	-
181	A3165201		Rectifier-bridge K		Appelez-nous	-
182	M0218116		Screw		Appelez-nous	-
183	M0325301		Insulator, Term. K		Appelez-nous	-
184	M0305201		Resistor		Appelez-nous	-
185	A3164702		Retainer Bar		Appelez-nous	-
186	A3145401		Bale Strap K		Appelez-nous	-
187	B5647901		Cover Cap Box K		Appelez-nous	-
188	A3148701		Gasket		Appelez-nous	-
189	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
190	B5663702		Housing Plate Assy		Appelez-nous	-
191	M0274028		Washer		Appelez-nous	-
192	M0370602		Magnet Coil		Appelez-nous	-
193	C3596101		Support		Appelez-nous	-
194	B5621901		Washer		Appelez-nous	-
195	M0371101		Magnetron		Appelez-nous	-
196	M0370403		Thermal Prot		Appelez-nous	-
197	M0115802		Clip		Appelez-nous	-
198	A3194804		Strain Relief, Power Cord		Appelez-nous	-
199	B5669001		Cord, Power		Appelez-nous	-
200	A3148801		Capacitor K		Appelez-nous	-
201	M0281901		Hex Nut		Appelez-nous	-
202	B5655902		Clip K		Appelez-nous	-
203	B5656001		Shield Hv K		Appelez-nous	-
204	B5693901		Fuse Holder K		Appelez-nous	-
205	A3194302		Fuse, 10 Amp		Appelez-nous	-
206	B5686901		Line Filter		Appelez-nous	-
207	M0288001		Nut K		Appelez-nous	-
208	M0202516		Screw A		Appelez-nous	-
209	M0272803		Lock Washer		Appelez-nous	-
218	A3180201		Insulation Board		Appelez-nous	-
219	A3178701		Terminal Block		Appelez-nous	-
220	M0203007		Screw		Appelez-nous	-
221	M0281001		Nut-hex		Appelez-nous	-
222	B5644101		Terminal Board		Appelez-nous	-
