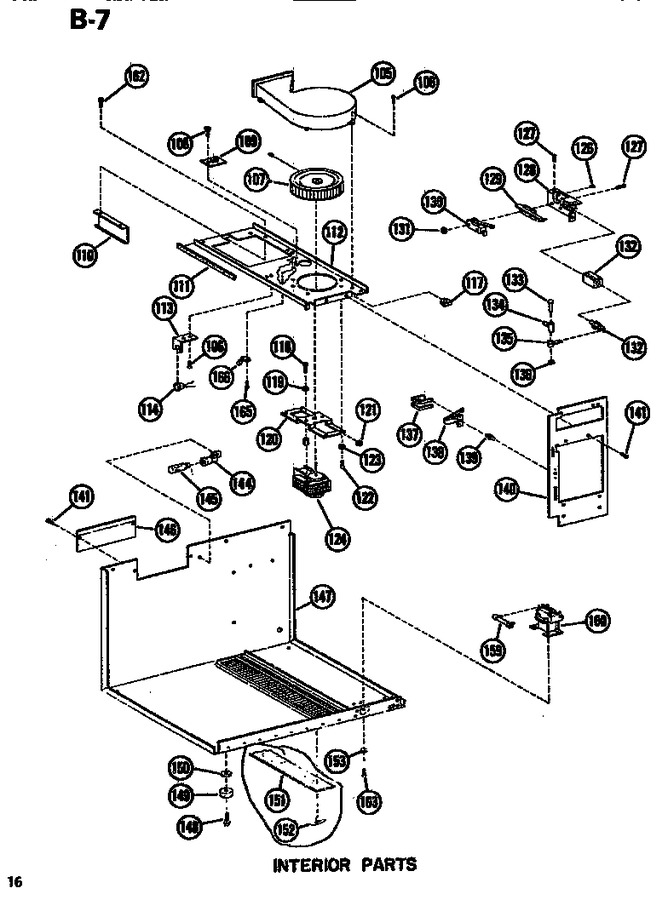

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 105 | C3667301 | Scroll-blower |
|
- | |||||
| 106 | M0230015 | Screw |
|
- | |||||
| 107 | B5661101 | Ass`y, Blower Wheel |
|
- | |||||
| 108 | M0216517 | Screw |
|
- | |||||
| 109 | B5607002 | Terminal Board |
|
- | |||||
| 110 | C3596101 | Support |
|
- | |||||
| 111 | A3030302 | Gasket |
|
- | |||||
| 112 | D7130801 | Bulkhead |
|
- | |||||
| 113 | B5680301 | Bracket-cut Out |
|
- | |||||
| 114 | B5665802 | Thermal Cut-out |
|
- | |||||
| 117 | A4568702 | Grommet |
|
- | |||||
| 118 | M0202642 | Screw |
|
- | |||||
| 119 | M0272605 | Washer |
|
- | |||||
| 120 | C3656501 | Motor |
|
- | |||||
| 121 | A0381401 | Eyelet K |
|
- | |||||
| 121 | YA0381501 | Clip, Waterline |
|
- | |||||
| 122 | M0216517 | Screw |
|
- | |||||
| 123 | M0270504 | Washer |
|
- | |||||
| 124 | C3656502 | Motor 50 Cy |
|
- | |||||
| 126 | M0201414 | Screw |
|
- | |||||
| 127 | M0202521 | Screw |
|
- | |||||
| 128 | C3666902 | Bracket, Latch Switch |
|
- | |||||
| 129 | A3148501 | Spring, Latch |
|
- | |||||
| 130 | A3163405 | Switch Preform A |
|
- | |||||
| 131 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 132 | B5682102 | Solenoid-latch |
|
- | |||||
| 133 | A3182601 | Pin Bell-crank |
|
- | |||||
| 134 | B5672502 | Bell Crank |
|
- | |||||
| 135 | B5672503 | Bell Crank |
|
- | |||||
| 136 | M0270524 | Washer |
|
- | |||||
| 137 | B5685302 | Spring-reset Arm |
|
- | |||||
| 138 | C3667501 | Arm-reset |
|
- | |||||
| 139 | A3183103 | Button-reset Arm |
|
- | |||||
| 140 | B5660202 | Front-o C |
|
- | |||||
| 141 | M0230015 | Screw |
|
- | |||||
| 144 | B5651201 | Socket |
|
- | |||||
| 145 | A3155001 | Light Bulb |
|
- | |||||
| 146 | A3198102 | Panel-bulb Access |
|
- | |||||
| 147 | C3639904 | Weldment, Outer Case Base Pan |
|
- | |||||
| 148 | M0221132 | Screw |
|
- | |||||
| 149 | M0011001 | Foot |
|
- | |||||
| 150 | M0270519 | Washer |
|
- | |||||
| 151 | A3094901 | Filter |
|
- | |||||
| 152 | M0111203 | Clip |
|
- | |||||
| 153 | A0381401 | Eyelet K |
|
- | |||||
| 159 | M0305007 | Resistor, Relay A |
|
- | |||||
| 160 | C3656302 | Relay, Power And Surge |
|
- | |||||
| 162 | M0216517 | Screw |
|
- | |||||
| 163 | M0216532 | Screw |
|
- | |||||
| 165 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 166 | M0320901 | Terminal |
|
- | |||||
| NI | M0102310 | Clamp, Wiring |
|
- |
