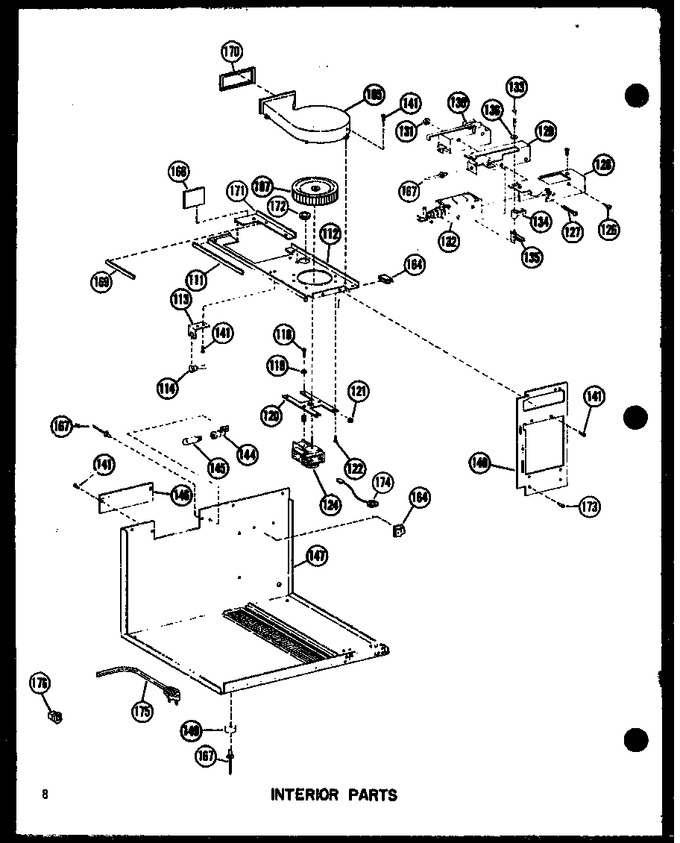

01 - Interior Parts


02 - Interior Parts


03 - Page 1


04 - Page 4


05 - Page 5


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
105	C3667301		Scroll-blower		Appelez-nous	-
107	B5661101		Ass`y, Blower Wheel		Appelez-nous	-
111	A3030302		Gasket		Appelez-nous	-
112	D7255601		Bulkhead		Appelez-nous	-
113	B5680301		Bracket-cut Out		Appelez-nous	-
114	B5665803		Thermal Cut-out		Appelez-nous	-
118	M0202642		Screw		Appelez-nous	-
119	M0272605		Washer		Appelez-nous	-
120	B5744001		Motor Mount-bl		Appelez-nous	-
121	A0381401		Eyelet K		Appelez-nous	-
121	YA0381501		Clip, Waterline		Appelez-nous	-
122	M0216517		Screw		Appelez-nous	-
124	C3656505		Motor		Appelez-nous	-
126	M0201414		Screw		Appelez-nous	-
127	M0202521		Screw		Appelez-nous	-
128	C8712101		Bracket, Latch Switch		Appelez-nous	-
129	B5719601		Spring, Latch		Appelez-nous	-
130	A3163405		Switch Preform A		Appelez-nous	-
131	M0282005		Nut K				$ 7.07
132	B5682103		Solenoid, Door Locking		Appelez-nous	-
133	A3182602		Pin-bell Crank		Appelez-nous	-
134	B5672502		Bell Crank		Appelez-nous	-
135	B5672503		Bell Crank		Appelez-nous	-
136	M0270530		Washer		Appelez-nous	-
140	D7256401		Front-oc		Appelez-nous	-
141	M0230015		Screw		Appelez-nous	-
144	B5742001		Socket-oven Light		Appelez-nous	-
145	A3167501		Bulb Q				$ 28.47
146	A3198103		Panel-bulb Access		Appelez-nous	-
147	D7256701		Basepan Wld		Appelez-nous	-
149	B5732501		Foot		Appelez-nous	-
164	M0104102		Clip, Cord				$ 8.10
167	A4539601		Pop Rivet		Appelez-nous	-
168	B5695301		Gasket		Appelez-nous	-
169	A3030309		Gasket (per Foot)		Appelez-nous	-
170	A3030301		Gasket (inch)		Appelez-nous	-
171	C8735001		Ext-bulkhead		Appelez-nous	-
172	A3258801		Grommet		Appelez-nous	-
173	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
174	C3655867		Jumper Wire		Appelez-nous	-
175	B5703506		Power Cord		Appelez-nous	-
176	M0370001		Strain Relief		Appelez-nous	-
NI	M0325301		Insulator, Term. K		Appelez-nous	-
