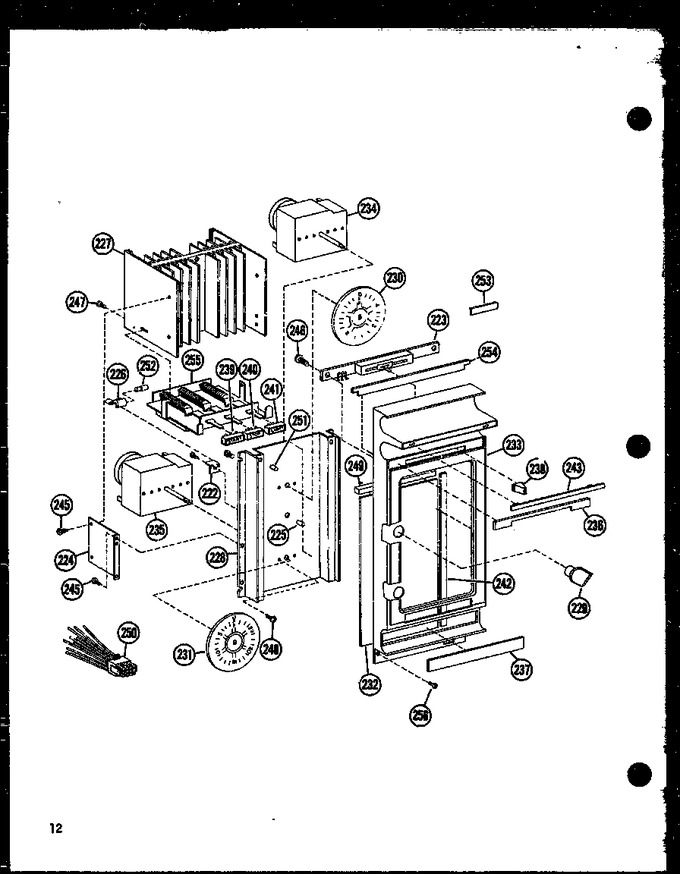

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
222	A3257601		Bracket-pilot Light		Appelez-nous	-
223	B5741502		Control-cm		Appelez-nous	-
224	B5748101		Bracket Mod Mtg		Appelez-nous	-
225	B5741001		Pipe-light		Appelez-nous	-
226	B5741101		Lampholder		Appelez-nous	-
227	C8734901		Timer Kit		Appelez-nous	-
228	C8735101		Extrusion-control		Appelez-nous	-
229	C8735901		Knob		Appelez-nous	-
230	C8735703		Disc-timer		Appelez-nous	-
231	C8735704		Disc-timer		Appelez-nous	-
232	C8735601		Lens, Escutcheon		Appelez-nous	-
233	D7255301		Escutcheon, Control		Appelez-nous	-
234	C8736201		Timer-5 Min		Appelez-nous	-
235	C8736001		Timer-30 Min		Appelez-nous	-
236	B5755902		Nameplate		Appelez-nous	-
237	B5741301		Nameplate K		Appelez-nous	-
238	B5742501		Knob-control		Appelez-nous	-
239	C8743101		Button (start) K		Appelez-nous	-
240	C8743102		Button (stop) K		Appelez-nous	-
241	C8743103		Button (light)		Appelez-nous	-
242	A3259201		Gasket		Appelez-nous	-
243	B5703901		Insert- K		Appelez-nous	-
245	M0234114		Screw		Appelez-nous	-
246	M0228016		Screw		Appelez-nous	-
247	M0234003		Screw		Appelez-nous	-
248	WPW10068250		Screw   (Replaces: M0202530)				$ 3.66
249	A4591128		Gasket		Appelez-nous	-
250	C8737701		Wiring Harness		Appelez-nous	-
251	M1200104		Pin		Appelez-nous	-
252	A3171201		Bulb		Appelez-nous	-
253	M0275009		Tape		Appelez-nous	-
254	A3266001		Shield-cm Control		Appelez-nous	-
255	C8742801		Switch Assy		Appelez-nous	-
256	M0229916		Screw T.c		Appelez-nous	-
NI	M0910002		Adhesive		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
