Diagram # Part Number Description Series Availability Ships Price Add to Cart
105 C3667301 Scroll-blower Appelez-nous -
107 B5661101 Ass`y, Blower Wheel Appelez-nous -
111 A3030302 Gasket Appelez-nous -
112 D7255601 Bulkhead Appelez-nous -
113 B5680301 Bracket-cut Out Appelez-nous -
114 B5665803 Thermal Cut-out Appelez-nous -
118 M0202642 Screw Appelez-nous -
119 M0272605 Washer Appelez-nous -
120 B5744001 Motor Mount-bl Appelez-nous -
121 A0381401 Eyelet K Appelez-nous -
121 YA0381501 Clip, Waterline Appelez-nous -
122 M0216517 Screw Appelez-nous -
124 C3656505 Motor Appelez-nous -
126 M0201414 Screw Appelez-nous -
127 M0202521 Screw Appelez-nous -
128 C8712101 Bracket, Latch Switch Appelez-nous -
129 B5719601 Spring, Latch Appelez-nous -
130 A3163405 Switch Preform A Appelez-nous -
131 M0282005 Nut K Special Order $ 7.07

132 B5682103 Solenoid, Door Locking Appelez-nous -
133 A3182602 Pin-bell Crank Appelez-nous -
134 B5672502 Bell Crank Appelez-nous -
135 B5672503 Bell Crank Appelez-nous -
136 M0270530 Washer Appelez-nous -
140 D7256401 Front-oc Appelez-nous -
141 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

144 B5742001 Socket-oven Light Appelez-nous -
145 A3167501 Bulb Q Special Order $ 28.47

146 A3198103 Panel-bulb Access Appelez-nous -
147 D7256701 Basepan Wld Appelez-nous -
149 B5732501 Foot Appelez-nous -
164 M0104102 Clip, Cord Special Order $ 8.10

167 A4539601 Pop Rivet Appelez-nous -
168 B5695301 Gasket Appelez-nous -
169 A3030309 Gasket (per Foot) Appelez-nous -
170 A3030301 Gasket (inch) Appelez-nous -
171 C8735001 Ext-bulkhead Appelez-nous -
172 A3258801 Grommet Appelez-nous -
173 WP3388228 Screw Xxx   (Replaces: M0216703) Special Order $ 6.26

174 C3655867 Jumper Wire Appelez-nous -
175 B5703506 Power Cord Appelez-nous -
176 M0370001 Strain Relief Appelez-nous -
177 M0230015 Screw Appelez-nous -
178 A4539607 Pop Rivet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

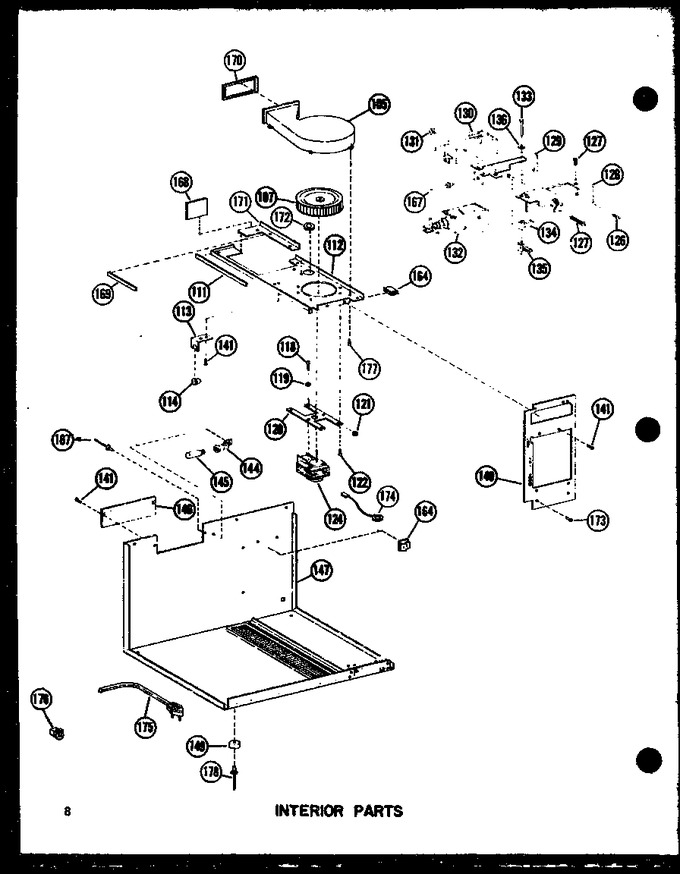

Diagram for RR9 (BOM: P7211005M)
