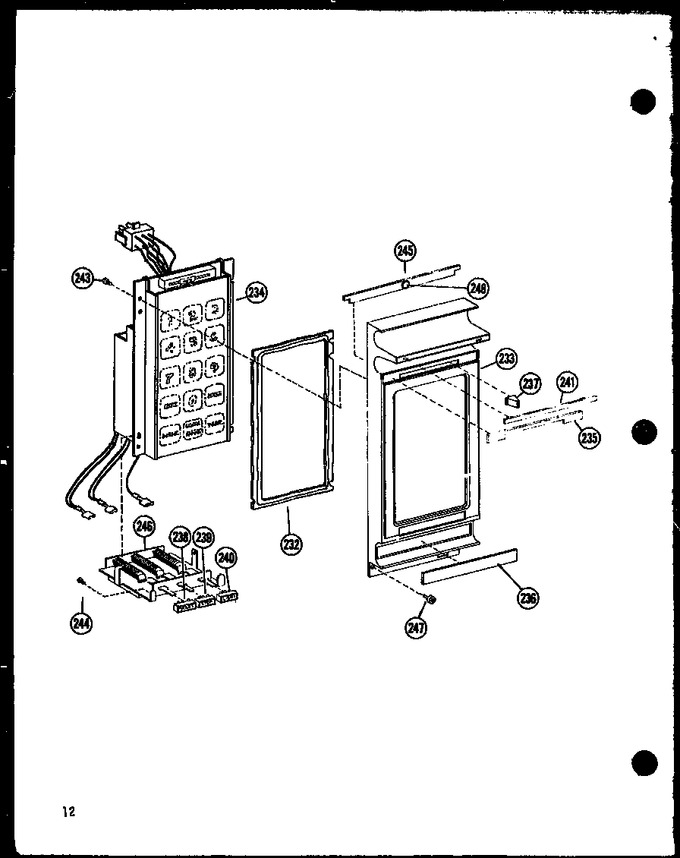

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 232 | C8716001 | Gasket-escutcheon |
|
- | |||||
| 233 | D7255301 | Escutcheon, Control |
|
- | |||||
| 234 | D7258302 | Net-module Rr9 |
|
- | |||||
| 235 | B5755901 | Name Plate |
|
- | |||||
| 236 | B5741301 | Nameplate K |
|
- | |||||
| 237 | B5742501 | Knob-control |
|
- | |||||
| 238 | C8743101 | Button (start) K |
|
- | |||||
| 239 | C8743102 | Button (stop) K |
|
- | |||||
| 240 | C8743103 | Button (light) |
|
- | |||||
| 241 | B5703901 | Insert- K |
|
- | |||||
| 243 | M0228016 | Screw |
|
- | |||||
| 244 | M0234003 | Screw |
|
- | |||||
| 245 | A3266001 | Shield-cm Control |
|
- | |||||
| 246 | C8742802 | Switch Ssl K |
|
- | |||||
| 247 | M0229916 | Screw T.c |
|
- | |||||
| 248 | A3195701 | Guides Hndl K |
|
- | |||||
| NI | M0910002 | Adhesive |
|
- |
