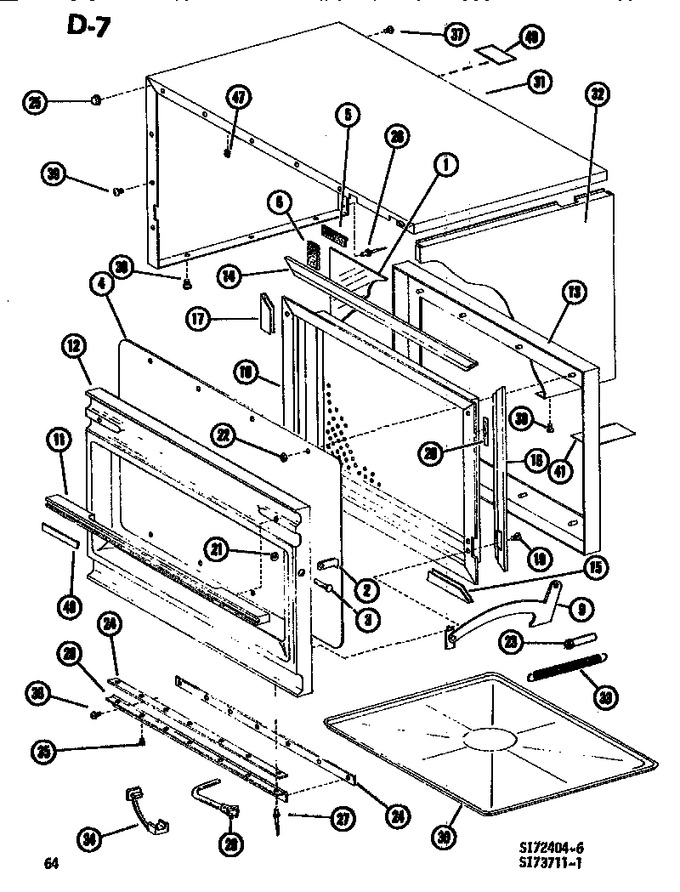

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3167901		Inner Window A-k		Appelez-nous	-
2	A3183001		Latch, Door		Appelez-nous	-
3	A3183901		Rivet		Appelez-nous	-
4	A3254901		Window Outer A		Appelez-nous	-
5	A3264601		Gasket Window A-k		Appelez-nous	-
6	A3264602		Gasket Window A-k		Appelez-nous	-
9	B5693103		Cb Arm R A		Appelez-nous	-
9	B5693104		Cb Arm L A		Appelez-nous	-
10	C8755401		Inner Door Assy A		Appelez-nous	-
11	D7275901		Door Handle		Appelez-nous	-
12	D7238602		Chrome Outer Door Casting		Appelez-nous	-
13	D7240301		Inner Door Mold Assy		Appelez-nous	-
14	D7320001		Gasket Top A		Appelez-nous	-
15	D7320002		Gasket Bottom A		Appelez-nous	-
16	D7320003		Gasket Right A		Appelez-nous	-
17	D7320004		Gasket Left A		Appelez-nous	-
19	M0258518		Screw		Appelez-nous	-
20	M0275115		Tape Per Roll		Appelez-nous	-
21	M0287401		Nut		Appelez-nous	-
22	M0288801		Nut K		Appelez-nous	-
23	R0193032		Screw Remover				$ 31.92
24	A3127101		Shim		Appelez-nous	-
24	A3127102		Shim		Appelez-nous	-
25	A1511502		Bumper		Appelez-nous	-
26	A4539615		Rivet-pop		Appelez-nous	-
27	A4539602		Pop Rivet		Appelez-nous	-
28	B5603203		Hinge		Appelez-nous	-
29	B5669001		Cord, Power		Appelez-nous	-
30	D7089603		Oven Tray Kit		Appelez-nous	-
31	D7378101		Outer Cabinet		Appelez-nous	-
32	D7378001		Access Pnl		Appelez-nous	-
33	M0775001		Spring		Appelez-nous	-
34	A3278802		Strain Relief		Appelez-nous	-
35	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
36	M0217701		Screw		Appelez-nous	-
37	M0213815		Screw		Appelez-nous	-
38	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
39	M0216517		Screw		Appelez-nous	-
41	B5738501		Seal K		Appelez-nous	-
47	M0288010		Speed Nut		Appelez-nous	-
48	M0275144		Tape Alum		Appelez-nous	-
49	B5604802		Insert-handle		Appelez-nous	-
NI	B5745802		Bushing		Appelez-nous	-
NI	C8744901		Spacer-handle		Appelez-nous	-
NI	M0251002		Screw		Appelez-nous	-
