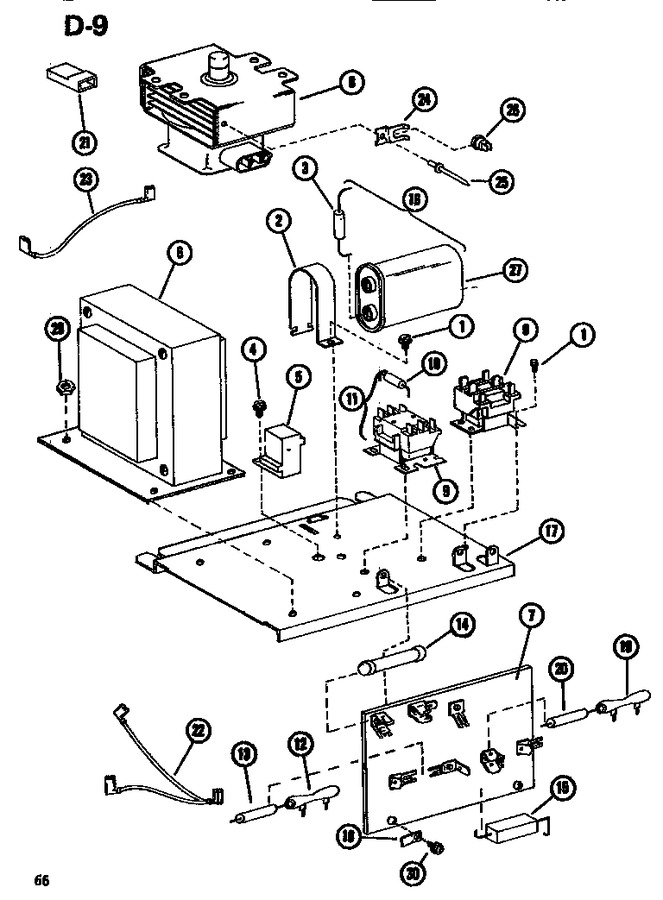

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0218116		Screw		Appelez-nous	-
2	A3257001		Strap-capacitor		Appelez-nous	-
4	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
5	11QBP0235		Kit, Diode   (Replaces: B5767801)				$ 15.33
6	D7423001		Transformer		Appelez-nous	-
7	C8821003		Terminal Board		Appelez-nous	-
8	C8761707		Magnetron		Appelez-nous	-
9	C3656302		Relay, Power And Surge		Appelez-nous	-
10	M0305007		Resistor, Relay A		Appelez-nous	-
11	R0159007		Relay Assy		Appelez-nous	-
12	M0305009		Resistor A		Appelez-nous	-
13	M0308102		Fuse		Appelez-nous	-
14	A3194303		Fuse, 12 Amp		Appelez-nous	-
15	M0305204		Resistor		Appelez-nous	-
16	R0160024		Assembly, Capacitor, Oil-fille		Appelez-nous	-
17	D7405301		Transformer Plate		Appelez-nous	-
18	M0320901		Terminal		Appelez-nous	-
19	M0305011		Resistor, 500 Ohm, 8 Watt		Appelez-nous	-
20	M0308106		Fuse		Appelez-nous	-
21	M0325301		Insulator, Term. K		Appelez-nous	-
22	D7365101		Jumper Wire		Appelez-nous	-
22	D7365111		Jumper Wire		Appelez-nous	-
22	D7292617		Wire, Jumper, Rectifiers Fuse		Appelez-nous	-
23	C3655887		Jumper Wire		Appelez-nous	-
23	D7292647		Jumper Wire		Appelez-nous	-
23	C3655888		Jumper Wire		Appelez-nous	-
23	D7365112		Jumper Wire		Appelez-nous	-
24	B5725102		Clip		Appelez-nous	-
25	A4539601		Pop Rivet		Appelez-nous	-
26	B5665810		Thermal Cut Out		Appelez-nous	-
27	C8790502		Capacitor Kit		Appelez-nous	-
29	WP487939		Nut   (Replaces: M0282015)				$ 6.95
30	M0251002		Screw		Appelez-nous	-
