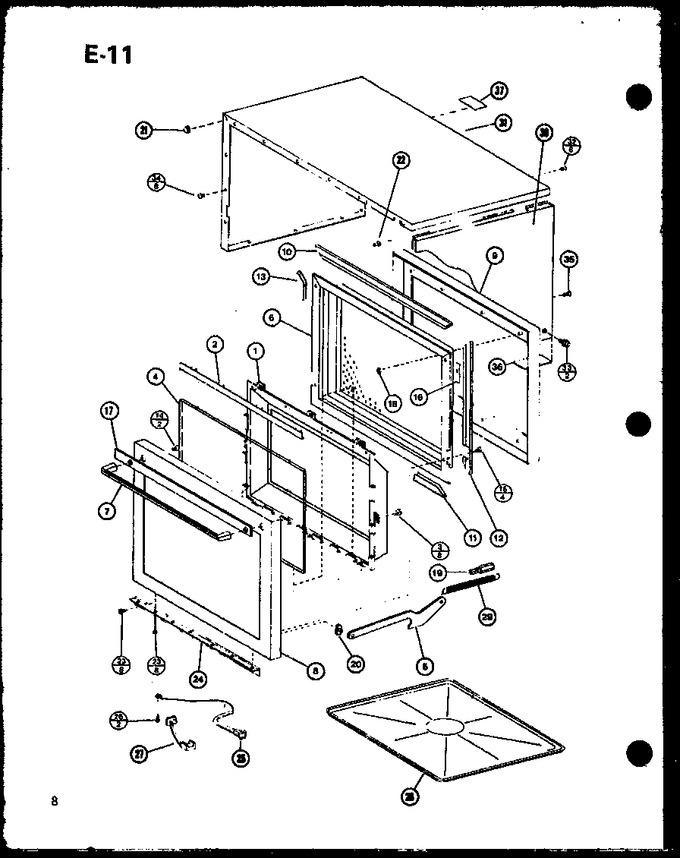

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7533601		Retainer		Appelez-nous	-
2	D7533501		Cap Lens Retainer		Appelez-nous	-
3	M0253704		Screw A K		Appelez-nous	-
4	D7534002		Outer Window		Appelez-nous	-
5	C8890602		Counterbalance Arm		Appelez-nous	-
6	C8755405		Inner Door Assy		Appelez-nous	-
7	D7623801		Door Handle		Appelez-nous	-
8	D7597705		Outer Door		Appelez-nous	-
9	R0157457		Inner Door Mold Assy		Appelez-nous	-
10	D7542001		Gasket, Door		Appelez-nous	-
11	D7542002		Gasket, Door		Appelez-nous	-
12	D7542005		Gasket, Door		Appelez-nous	-
13	D7542006		Gasket Door		Appelez-nous	-
14	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
15	M0259218		Screw		Appelez-nous	-
16	M0275115		Tape Per Roll		Appelez-nous	-
17	C8921401		Pad-door Handle		Appelez-nous	-
18	M0288801		Nut K		Appelez-nous	-
19	R0193046		Torx Bit Tx 15h		Appelez-nous	-
20	A1042201		Pin, Ctr Bal Arm		Appelez-nous	-
21	A1511502		Bumper		Appelez-nous	-
22	A4539615		Rivet-pop		Appelez-nous	-
23	M0259203		Screw		Appelez-nous	-
24	C8886601		Hinge		Appelez-nous	-
25	B8310501		Cord, Power		Appelez-nous	-
26	M0218116		Screw		Appelez-nous	-
27	A0319703		Strain Relief K		Appelez-nous	-
28	D7089603		Oven Tray Kit		Appelez-nous	-
29	C8893501		Spring Dr Latch K		Appelez-nous	-
30	D7378006		Access Panel		Appelez-nous	-
31	D7378110		Outer Cabinet		Appelez-nous	-
32	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
33	M0243324		Screw Torx		Appelez-nous	-
34	M0216517		Screw		Appelez-nous	-
35	M0259318		Screw Torx		Appelez-nous	-
36	B5738501		Seal K		Appelez-nous	-
37	M0275165		Tape Alum		Appelez-nous	-
