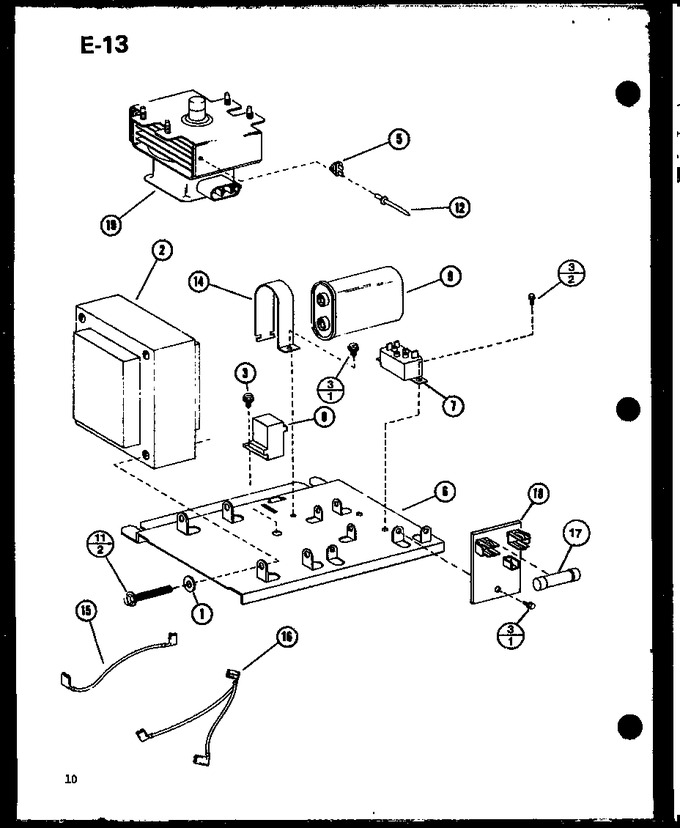

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0272805 | Lock Washer |
|
- | |||||
| 2 | D7391405 | Transformer K |
|
- | |||||
| 3 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 5 | B5795304 | Fuse, Thermal |
|
- | |||||
| 6 | D7351805 | Mtg Plate Trans |
|
- | |||||
| 7 | B5773502 | Relay K |
|
- | |||||
| 8 | B8329801 | Kit, Diode |
|
- | |||||
| 9 | 59001651 | Capacitor (Replaces: D8547901) |
|
$ 43.15 | |||||
| 11 | M0254452 | Screw |
|
- | |||||
| 12 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 14 | A3257003 | Strap-capacitor |
|
- | |||||
| 15 | D7365120 | Hv Wire |
|
- | |||||
| 15 | D7292618 | Jumper Wire |
|
- | |||||
| 16 | D7292637 | Jumper Wire K |
|
- | |||||
| 17 | ABC20 | Fuse 20 Amp K (Replaces: M0805101) |
|
Immediately | $ 10.31 | ||||
| 18 | C8845901 | Terminal Board K |
|
- | |||||
| 19 | C8761711 | Magnetron |
|
- |
