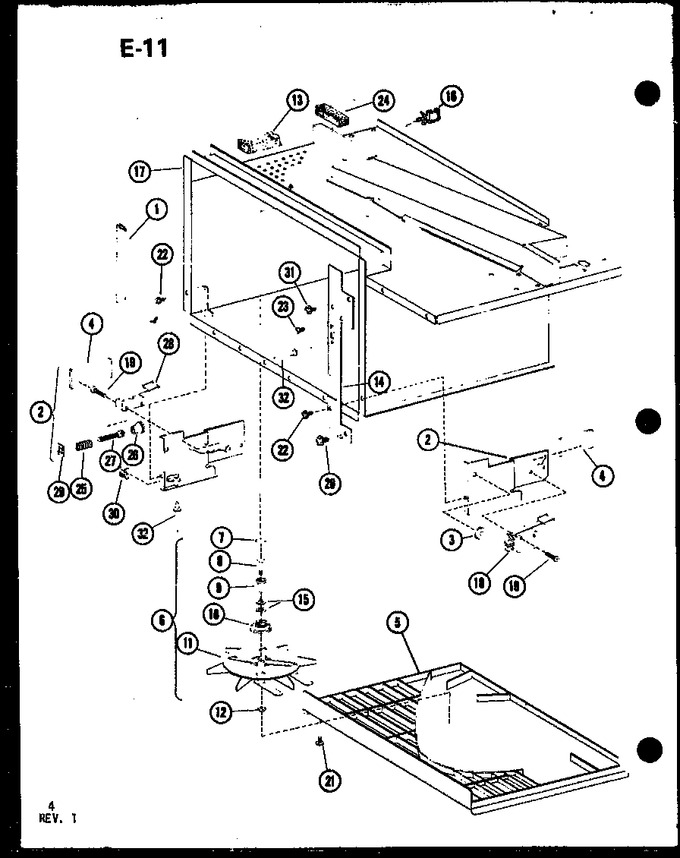

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C3637201 | Gasket |
|
- | |||||
| 2 | D7482003 | Ctr Brkt Assy |
|
- | |||||
| 2 | D7482001 | Ctr Brkt Assy - Right |
|
- | |||||
| 3 | R0157145 | Roller Assy Kit |
|
- | |||||
| 4 | M0050902 | X$x Pad |
|
- | |||||
| 5 | D7544001 | Grease Shield |
|
- | |||||
| 6 | C8806701 | Assy, Antenna |
|
- | |||||
| 7 | B5792601 | Bearing Cap |
|
- | |||||
| 8 | B5783101 | Stub-antenna A |
|
- | |||||
| 9 | B5783001 | Bearing-antenna A |
|
- | |||||
| 10 | C8838501 | Bushing A |
|
- | |||||
| 11 | R0183053 | Assy, Antenna |
|
- | |||||
| 12 | M0281203 | Nut A |
|
- | |||||
| 13 | A3263901 | Gasket |
|
- | |||||
| 14 | D7365505 | Flange-oven Cav |
|
- | |||||
| 15 | M0274044 | Washer |
|
- | |||||
| 16 | B5667302 | Clip |
|
- | |||||
| 17 | D7350506 | Oven Weld. |
|
- | |||||
| 18 | C8736705 | Interlock Switch |
|
- | |||||
| 19 | M0227525 | Screw A-k |
|
- | |||||
| 20 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 21 | M0213815 | Screw |
|
- | |||||
| 22 | M0216517 | Screw |
|
- | |||||
| 23 | M0217514 | Screw |
|
- | |||||
| 24 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 25 | A3277701 | Spring A |
|
- | |||||
| 26 | A3277801 | Guide Screw A-k |
|
- | |||||
| 27 | A3277601 | Screw Adjusting A-k |
|
- | |||||
| 28 | A3162510 | Switch-l Intl A |
|
- | |||||
| 29 | M0286114 | Speed Nut A |
|
- | |||||
| 30 | B5667302 | Clip |
|
- | |||||
| 31 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 32 | A4539601 | Pop Rivet |
|
- |
