SELECT A DIAGRAM

01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

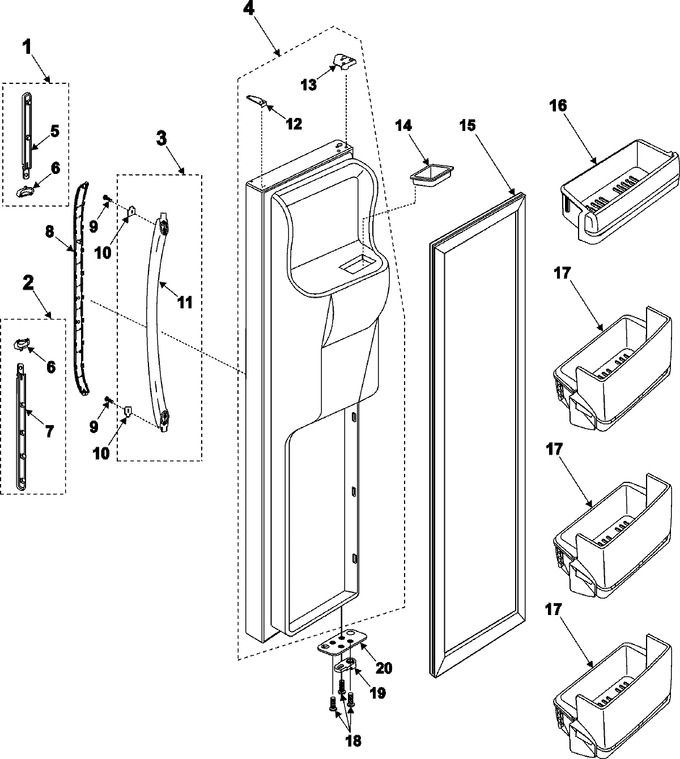

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Part No. Da97-01404c Currently Not Available		Appelez-nous	-
2	Y00000000		See Note Part No. Da97-01405c Currently Not Available.		Appelez-nous	-
3	Y00000000		See Note Part No. Da97-01403c Currently Not Available.		Appelez-nous	-
4	DA91-01605A		Assy Door Foam Fre		Appelez-nous	-
5	Y00000000		See Note Part No. Da64-00898c Currently Not Available.		Appelez-nous	-
6	Y00000000		See Note Part No. Da64-00901c Currently Not Available.		Appelez-nous	-
7	Y00000000		See Note Part No. Da64-00900c Currently Not Available.		Appelez-nous	-
8	Y00000000		See Note Part No. Da64-00899c Currently Not Available.		Appelez-nous	-
9	6002-000213		Screw-tapping			Immediately	$ 0.93
10	Y00000000		See Note Part No. Da64-00896c Currently Not Available.		Appelez-nous	-
11	DA61-01194A		Fixer-handle;sbhg1,03,t2.5,-,-		Appelez-nous	-
12	Y00000000		See Note Part No. Da67-00522a Currently Not Available.		Appelez-nous	-
13	Y00000000		See Note Part No. Da67-00593a Currently Not Available.		Appelez-nous	-
14	DA67-00513A		Cap-chute Ice		Appelez-nous	-
15	DA97-01800C		Assy-gasket Door,fre;a-top,w34		Appelez-nous	-
16	DA63-00895E		Guard-fre Up(85);a-top,hips,co		Appelez-nous	-
17	DA63-00827E		Guard-fre Low(85);a-top,hipp,c		Appelez-nous	-
18	6001-000716		Screw-machine				$ 0.85
19	555555		Cam Hinge-riser,low   (Replaces: DA66-90112C)				$ 151.94
20	DA61-00430A		Stopper Door				$ 14.72

    View Diagram in Separate Window       Print Part List
