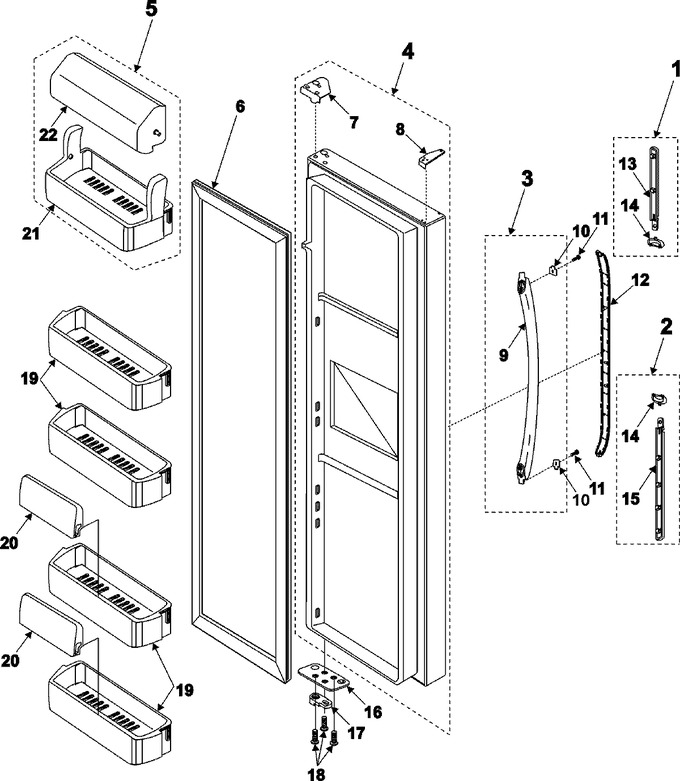

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Part No. Da97-01404c Currently Not Available		Appelez-nous	-
2	Y00000000		See Note Part No. Da97-01405c Currently Not Available.		Appelez-nous	-
3	Y00000000		See Note Part No. Da97-01403c Currently Not Available.		Appelez-nous	-
4	DA91-01606C		Assy Door Foam Ref		Appelez-nous	-
5	DA97-00697D		Assy Guard-dairy(85);a-top,exp				$ 97.82
6	DA97-01800D		Assy-gasket Door,ref;a-top,w46				$ 123.98
7	Y00000000		See Note Part No. Da67-00594a Currently Not Available.		Appelez-nous	-
8	Y00000000		See Note Part No. Da67-00522a Currently Not Available.		Appelez-nous	-
9	DA61-01194A		Fixer-handle;sbhg1,03,t2.5,-,-		Appelez-nous	-
10	Y00000000		See Note Part No. Da64-00896c Currently Not Available.		Appelez-nous	-
11	6002-000215		Screw-tapping			Immediately	$ 1.66
12	Y00000000		See Note Part No. Da64-00899c Currently Not Available.		Appelez-nous	-
13	Y00000000		See Note Part No. Da64-00898c Currently Not Available.		Appelez-nous	-
14	Y00000000		See Note Part No. Da64-00901c Currently Not Available.		Appelez-nous	-
15	Y00000000		See Note Part No. Da64-00900c Currently Not Available.		Appelez-nous	-
16	DA61-00430A		Stopper Door				$ 14.72
17	555555		Cam Hinge-riser,low   (Replaces: DA66-90112C)				$ 151.94
18	6001-000716		Screw-machine				$ 0.85
19	DA63-00828D		Guard-ref Low(85);a-top,hipp,c		Appelez-nous	-
20	DA71-00090A		Guide-bottle Ref				$ 10.60
21	DA63-00836D		Guard-dairy(85);a-top,hips,coo				$ 74.73
22	DA63-00825A		Cover-guard				$ 38.14
