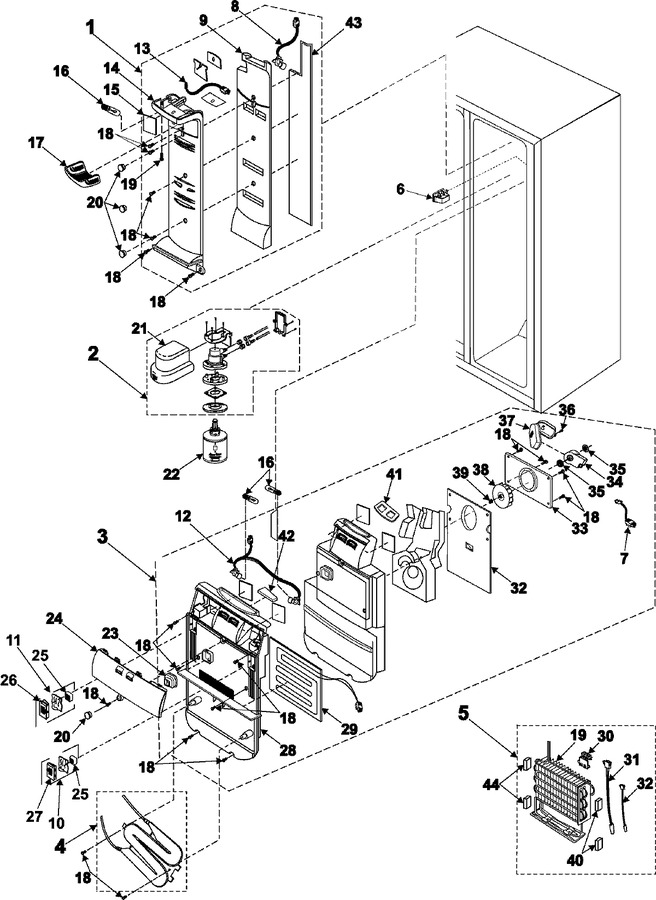

10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-01293D		Assy Cover-multi,ref;best-buy,		Appelez-nous	-
2	DA97-01666C		Assy Case-filter;a-top,-,-,-,n				$ 116.36
3	DA97-02427G		Assy Cover Evap-ref;best-buy,1		Appelez-nous	-
4	DA97-00670D		Assy Tank Water		Appelez-nous	-
5	555555		Assy Evap-ref   (Replaces: DA96-00020G)				$ 151.94
6	DA34-10110E		Switch Door-r;-,sliding,-,-,25				$ 50.74
7	DA39-00060K		W/harness Motor				$ 118.35
8	DA47-00112A		Lamp Holder		Appelez-nous	-
9	DA62-00517A		Insulation-multi Ref,a		Appelez-nous	-
11	DA97-01484B		Assy Cover-purifier L;a-top,co		Appelez-nous	-
12	DA47-00112B		Lamp Holder		Appelez-nous	-
13	DA32-10109W		Sensor Assembly			Immediately	$ 25.43
14	DA63-00821B		Cover-multi Ref;a-top,pp,cool-		Appelez-nous	-
15	DA62-00133B		Seal-al Foil		Appelez-nous	-
16	WPA3073101		Lamp-incandescent;130v,-,30w,b   (Replaces: 4713-001197)			Immediately	$ 10.90
17	DA63-00813A		Cover-lamp Ref,up		Appelez-nous	-
18	6002-001341		Screw-tapping;bh,+,1,m4,l16,da				$ 0.85
19	DA59-00234H		Evap Ref				$ 141.50
20	DA67-30266K		Cap-screw;a-top,cool-white,sc-				$ 0.85
21	DA97-00724C		Assy Cover-filter		Appelez-nous	-
22	DA29-00003G		Filter, Water   (Replaces: DA29-00003B)			Immediately	$ 49.99
23	DA61-00560B		Guide Air;pp,a-top,cover-evap,		Appelez-nous	-
24	DA63-00814G		Cover Lamp-ref Low;a-top,pp(rj		Appelez-nous	-
25	555555		Catalyst-ltc   (Replaces: DA02-90106K)				$ 151.94
26	DA63-00855D		Cover-purifier L;a-top,hips,co		Appelez-nous	-
27	DA63-00856C		Cover-purifier R;a-top,hips,co				$ 5.60
28	DA63-00812B		Cover Evap-ref;a-top,cool-whjt				$ 138.18
29	555555		Heater-water Tank   (Replaces: DA47-00094C)				$ 151.94
30	DA61-00453A		Fixer-sensor (wire Harness)				$ 2.50
31	555555		Thermo Fuse-assy   (Replaces: DA47-00095B)				$ 151.94
32	555555		Sensor Assy   (Replaces: DA32-00006B)				$ 151.94
33	DA61-00417A		Case Motor				$ 19.40
34	DA31-00020E		Motor Dc-bldc,drep3020la,fre				$ 131.27
35	DA63-01146A		Grommet-motor				$ 6.95
36	6002-001335		Screw-tapping;bh,+,1,m4,l12,da		Appelez-nous	-
37	DA63-01809A		Cover Motor-bldc				$ 12.12
38	DA31-00010D		Fan-ass`y			Immediately	$ 21.97
39	DA61-20128A		Spring-fan				$ 0.85
40	DA60-00041A		Spacer-evap Ref,r		Appelez-nous	-
41	DA62-00083A		Seal-air Ref		Appelez-nous	-
42	DA62-00158A		Seal-cover Evap,up		Appelez-nous	-
43	DA62-00565A		Seal-multi Ref,re		Appelez-nous	-
44	DA60-00040A		Spacer-evap Ref,l		Appelez-nous	-
