01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

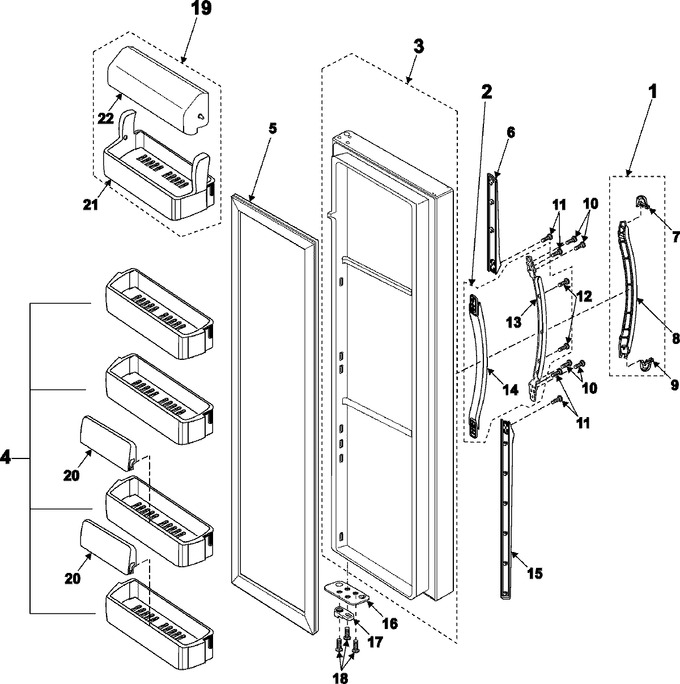

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00704Q		Assy-handle Mid Front;rs25,a-t		Appelez-nous	-
2	DA97-00703H		Assy Handle Rear;a-top,assy,-,		Appelez-nous	-
3	DA91-01606M		Assy Door Foam Ref		Appelez-nous	-
4	DA97-01824A		Assy Guard-ref Low(85);best-bu				$ 89.41
5	DA97-01800D		Assy-gasket Door,ref;a-top,w46				$ 123.98
6	DA64-00418J		Handle-trim Upp;rs25,abs,-,-,u		Appelez-nous	-
7	DA64-00416D		Handle-trim Connect,upp		Appelez-nous	-
8	DA64-00413L		Handle-mid Front		Appelez-nous	-
9	DA64-00415D		Handle-trim Connect,low		Appelez-nous	-
10	6002-000213		Screw-tapping			Immediately	$ 0.93
11	6002-000613		Screw-tapping			Immediately	$ 0.85
12	6002-000227		Screw-tapping				$ 1.66
13	DA61-00309A		Reinf-handle Mid		Appelez-nous	-
14	DA64-00414J		Handle-mid Rear;rs25,abs,-,-,s		Appelez-nous	-
15	DA64-00417J		Handle-trim Low;rs25,abs,-,-,u				$ 38.74
16	DA61-00430A		Stopper Door				$ 14.72
17	DA66-00344A		Cam-hinge Riser Low				$ 1.66
18	6001-001458		Screw-machine		Appelez-nous	-
19	DA97-00697E		Assy Guard-dairy(85);best-buy,		Appelez-nous	-
20	DA61-01588A		Guide Bottle;pp,best-buy 04,wh		Appelez-nous	-
21	DA63-00836D		Guard-dairy(85);a-top,hips,coo				$ 74.73
22	DA63-00825B		Cover-guard Dairy		Appelez-nous	-
