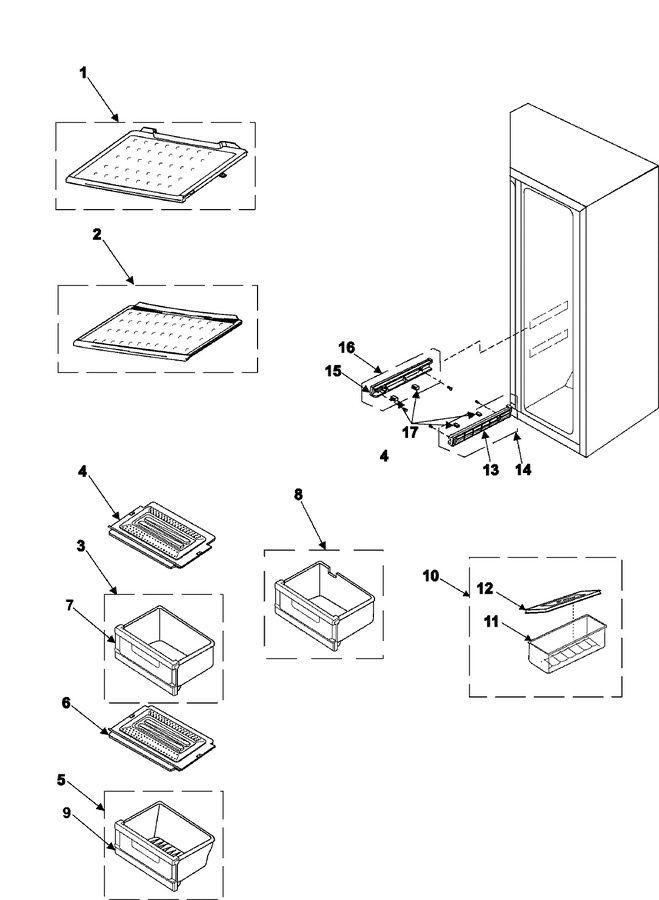

01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves


13 - Supplemental Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA67-00516E		Shelf Ref-up(750);best-buy,pp,		Appelez-nous	-
2	DA67-00517G		Shelf Ref-low(750);best-buy,pp		Appelez-nous	-
3	555555		Assy Case-veg,up(750);a-top,ex   (Replaces: DA97-00144N)				$ 151.94
4	DA63-00810C		Cover-veg Up(750);a-top,hips,c		Appelez-nous	-
5	555555		Assy Case-veg,low(750);a-top,e   (Replaces: DA97-00148N)				$ 151.94
6	DA63-00811C		Cover-veg Low(750);a-top,hips,				$ 64.66
7	555555		Cover-veg Front,a   (Replaces: DA63-00805A)				$ 151.94
8	DA97-00174K		Assy Tray-chilled(750);a-top,e		Appelez-nous	-
9	DA63-00806D		Cover-veg Front,b;a-top,hips,c				$ 29.83
10	DA97-00169A		Assy-case Egg		Appelez-nous	-
11	DA67-10144A		Case-egg		Appelez-nous	-
12	DA63-10363A		Cover-egg		Appelez-nous	-
13	Y00000000		See Note Rail-basket R(b Type) Currently Unavailble Must Order Item 14		Appelez-nous	-
14	DA97-00730F		Assy Rail-basket R(b-type);a-t				$ 8.60
15	Y00000000		See Note Rail-basket L(b Type) Currently Unavailable Must Order Item 16		Appelez-nous	-
16	DA97-00731F		Assy Rail-basket L(b-type);a-t		Appelez-nous	-
17	DA63-02079A		Grommet-rail(a,b-type);a-top,n		Appelez-nous	-
