01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves


13 - Supplemental Information

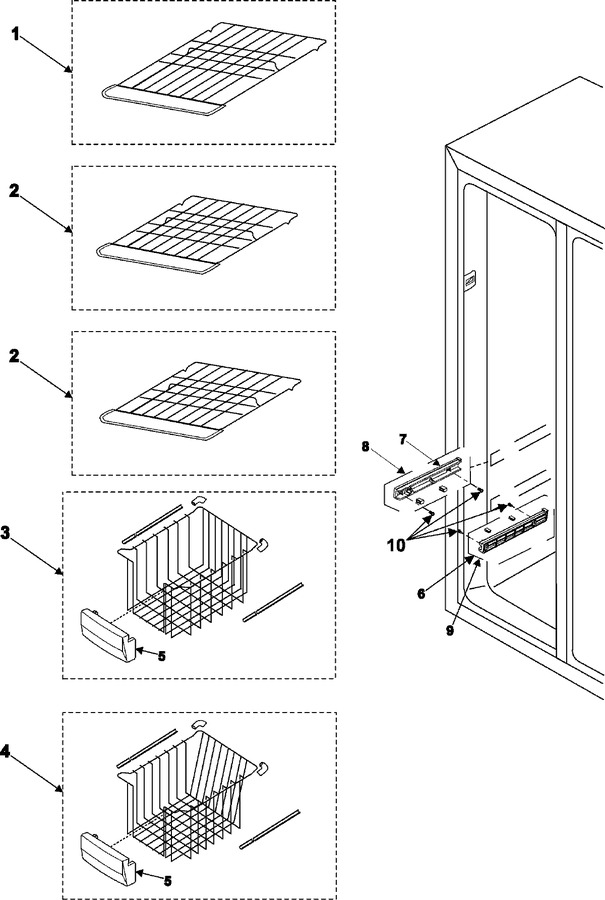

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00698E		Assy Shelf-wire Fre,mid(750);b		Appelez-nous	-
2	DA97-00699E		Assy Shelf-wire Fre,low(750);b		Appelez-nous	-
3	DA97-00701E		Assy Case-basket Up(750);best-		Appelez-nous	-
4	DA97-00700E		Assy Case-basket Low(750);best		Appelez-nous	-
5	DA63-01290B		Cover-wire Basket;a-top,hips,c		Appelez-nous	-
6	Y00000000		See Note Rail-basket R(a Type) Currently Unavailable Must Order Item 9		Appelez-nous	-
7	Y00000000		See Note Rail-basket L(a Type) Currently Unavailable Must Order Item 8		Appelez-nous	-
8	DA97-00731E		Assy Rail-basket L(a-type);a-t		Appelez-nous	-
9	DA97-00730E		Assy Rail-basket R(a-type);a-t		Appelez-nous	-
10	DA63-02079A		Grommet-rail(a,b-type);a-top,n		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
