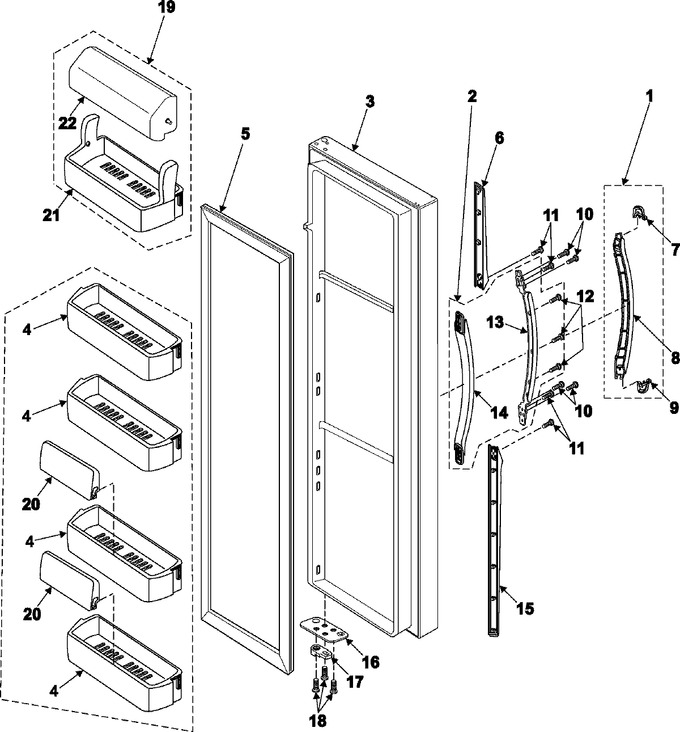

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00704H		Assy Handle-front				$ 19.53
2	DA97-00703A		Assy Handle-rear				$ 65.90
3	DA91-01606F		Assy Door Foam Ref		Appelez-nous	-
4	DA63-00830D		Guard-ref Low(50);a-top,hipp,c				$ 96.33
5	DA97-01800D		Assy-gasket Door,ref;a-top,w46				$ 123.98
6	DA64-00418B		Handle-trim Upp		Appelez-nous	-
7	DA64-00416B		Handle-trim Connect Upp		Appelez-nous	-
8	DA64-00413F		Handle-mid Front		Appelez-nous	-
9	DA64-00415B		Handle-trim Connect,low		Appelez-nous	-
10	Y00000000		See Note Screw-tapping Currently Unavailable		Appelez-nous	-
11	Y00000000		See Note Screw-tapping Currently Unavailable		Appelez-nous	-
12	6002-001122		Screw-tapping			Immediately	$ 1.66
13	DA61-00309A		Reinf-handle Mid		Appelez-nous	-
14	DA64-00414B		Handle-mid Rear		Appelez-nous	-
15	DA64-00417B		Handle-trim Low				$ 17.21
16	DA61-00564A		Stopper Door		Appelez-nous	-
17	DA66-00344A		Cam-hinge Riser Low				$ 1.66
18	Y00000000		See Note Screw-machine Currently Unavailable		Appelez-nous	-
19	DA97-00160D		Assy Guard-dairy(50);a-top,exp				$ 130.03
20	DA71-00090A		Guide-bottle Ref				$ 10.60
21	DA63-00852D		Guard-dairy(50);a-top,hips,coo				$ 93.61
22	DA63-00848A		Cover-guard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
