SELECT A DIAGRAM

01 - Enclosure


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Ice Maker


09 - Machine Compartment-compressor


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves


13 - Supplemental Information

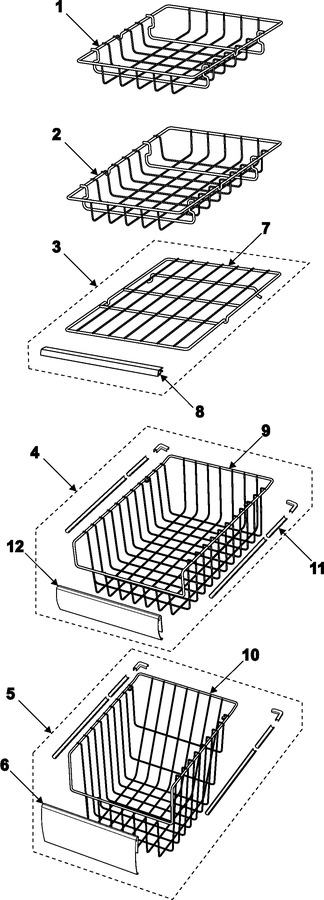

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA67-01024A		Shelf Wire-fre Upp				$ 85.85
2	DA67-01025A		Shelf Wire-fre Low(half Basket				$ 87.26
3	DA97-02037B		Assy Shelf Wire-fre Low;ad,pe-				$ 64.59
4	DA97-02049B		Assy Case-wire Basket Upp;ad,-				$ 122.00
5	DA97-02040A		Assy Case-wire Basket Low;ad,-				$ 105.98
6	DA97-02527A		Assy Case-wire Basket Low		Appelez-nous	-
7	DA67-01023B		Shelf Wire-fre Low				$ 67.11
8	DA97-02037B		Assy Shelf Wire-fre Low;ad,pe-				$ 64.59
9	DA61-01653B		Case-wire Basket Upp		Appelez-nous	-
10	DA61-02021A		Case-wire Basket Low		Appelez-nous	-
11	DA64-00676E		Trim-wire Basket,b;ad,pvc,-,-,		Appelez-nous	-
12	DA97-02049B		Assy Case-wire Basket Upp;ad,-				$ 122.00
