SELECT A DIAGRAM

01 - Enclosure


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Ice Maker


09 - Machine Compartment-compressor


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves


13 - Supplemental Information

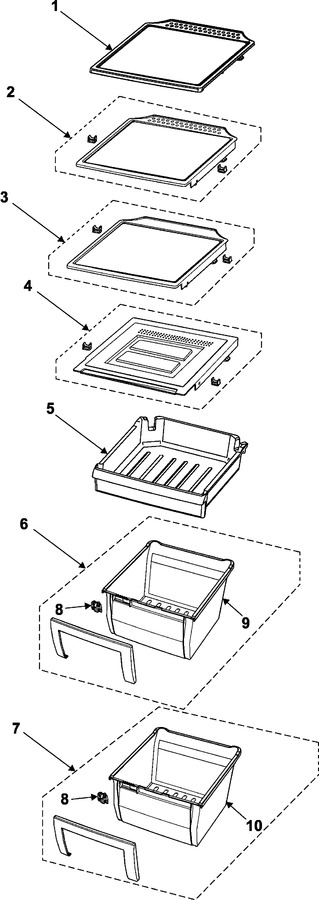

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA67-01020B		Shelf Ref-insert				$ 118.69
2	DA97-02101B		Assy Shelf-chilled Insert;ad,s				$ 91.12
3	DA97-02102B		Assy Cover Veg-upp Insert;ad,a		Appelez-nous	-
4	DA97-02053B		Assy Cover Veg-low;ad,san,-,-,				$ 57.44
5	DA63-01978B		Tray Chil Room				$ 100.98
6	DA97-02062A		Assy Case Veg-up;ad,good,-,-,-		Appelez-nous	-
7	555555		Assy Case Veg-low;ad,good,-,-,   (Replaces: DA97-02063B)				$ 151.94
8	DA64-00085B		Knob-moisture Control(et);et-p		Appelez-nous	-
9	DA61-01718B		Case-veg Up;ad,san,-,-,-,trp,2		Appelez-nous	-
10	DA61-01717B		Case-veg Low;ad,san,-,-,-,-,2p				$ 86.42

    View Diagram in Separate Window       Print Part List
