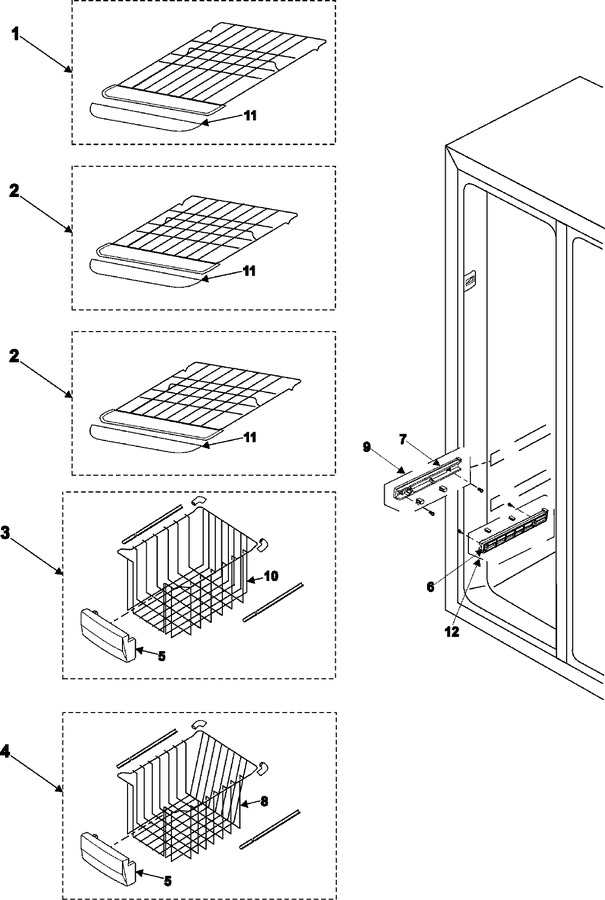

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00698E		Assy Shelf-wire Fre,mid(750);b		Appelez-nous	-
2	DA97-00699E		Assy Shelf-wire Fre,low(750);b		Appelez-nous	-
3	DA97-00701E		Assy Case-basket Up(750);best-		Appelez-nous	-
4	DA97-00700E		Assy Case-basket Low(750);best		Appelez-nous	-
5	DA63-01290B		Cover-wire Basket;a-top,hips,c		Appelez-nous	-
6	DA61-00291C		Rail-basket R(a-type);hips,a-t		Appelez-nous	-
7	DA61-00290C		Rail-basket L(a-type);hips,a-t		Appelez-nous	-
8	DA61-01195A		Case-wire Basket,low		Appelez-nous	-
9	DA97-00730E		Assy Rail-basket R(a-type);a-t		Appelez-nous	-
10	DA61-01197A		Case-wire Basket,upp		Appelez-nous	-
11	DA64-00670B		Trim-shelf Wire;a-top,hips,coo		Appelez-nous	-
12	DA97-00731E		Assy Rail-basket L(a-type);a-t		Appelez-nous	-
NI	DA63-00202A		Grommet-rail				$ 0.74

    View Diagram in Separate Window       Print Part List
