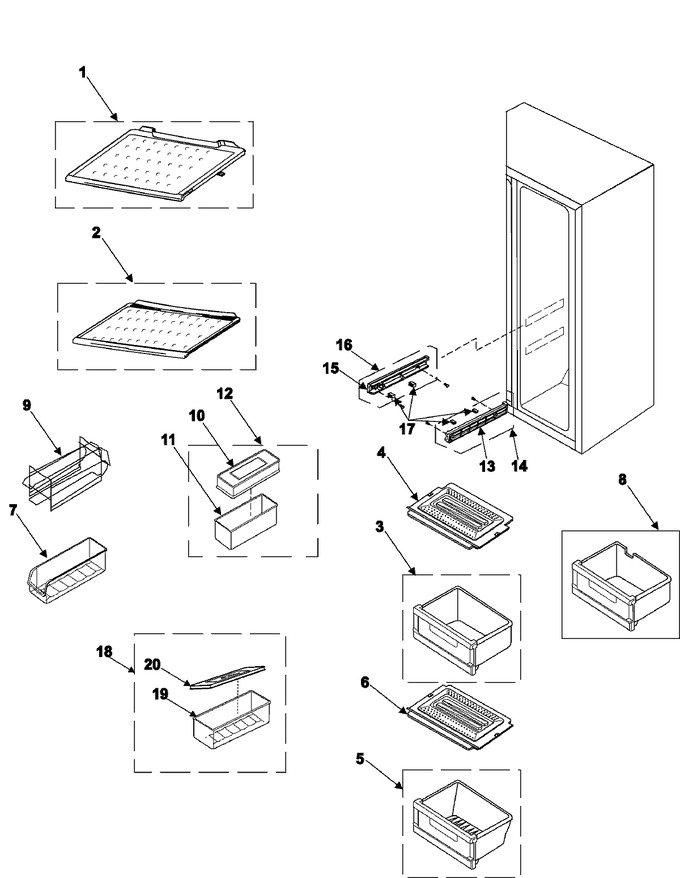

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA67-00516E		Shelf Ref-up(750);best-buy,pp,		Appelez-nous	-
2	DA67-00517G		Shelf Ref-low(750);best-buy,pp		Appelez-nous	-
3	555555		Assy Case-veg,up(750);a-top,ex   (Replaces: DA97-00144N)				$ 151.94
4	DA63-00810C		Cover-veg Up(750);a-top,hips,c		Appelez-nous	-
5	555555		Assy Case-veg,low(750);a-top,e   (Replaces: DA97-00148N)				$ 151.94
6	DA63-00811C		Cover-veg Low(750);a-top,hips,				$ 64.66
7	DA67-40250E		Tray-utility				$ 56.08
8	DA97-00174K		Assy Tray-chilled(750);a-top,e		Appelez-nous	-
9	DA61-01220A		Case-wire Can,carry		Appelez-nous	-
10	DA97-01288A		Assy-butter Dish		Appelez-nous	-
11	DA61-01262A		Case-butter Dish		Appelez-nous	-
12	DA63-01689A		Cover-butter Dish		Appelez-nous	-
13	DA61-00293C		Rail-basket R(b-type);hips,a-t		Appelez-nous	-
14	DA97-00730F		Assy Rail-basket R(b-type);a-t				$ 8.60
15	DA61-00292C		Rail-basket L(b-type);hips,a-t		Appelez-nous	-
16	DA97-00731F		Assy Rail-basket L(b-type);a-t		Appelez-nous	-
17	DA63-00202A		Grommet-rail				$ 0.74
18	DA97-00169A		Assy-case Egg		Appelez-nous	-
19	DA67-10144A		Case-egg		Appelez-nous	-
20	DA63-10363A		Cover-egg		Appelez-nous	-
