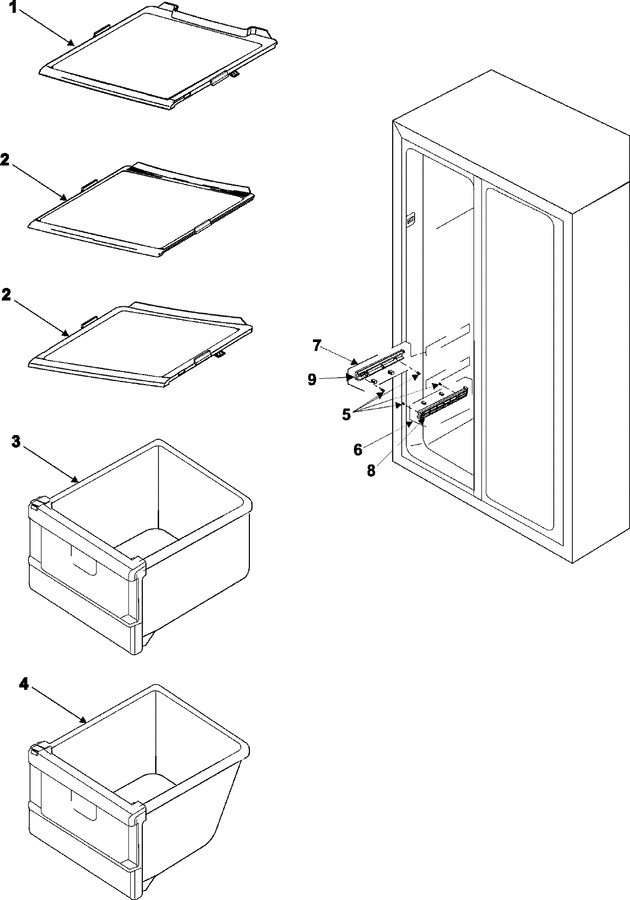

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00157G		Assy Shelf-fre,mid(750);cool-w		Appelez-nous	-
2	DA97-00158K		Assy Shelf-low,fre(750);cool-w				$ 64.22
3	DA97-00142N		Assy Case-basket,up(750);a-top		Appelez-nous	-
4	DA97-00143N		Assy Case-basket,low(750);a-to				$ 125.70
5	DA63-00202B		Grommet-rail				$ 2.03
6	DA97-00730E		Assy Rail-basket R(a-type);a-t		Appelez-nous	-
7	DA97-00731E		Assy Rail-basket L(a-type);a-t		Appelez-nous	-
8	DA61-00291C		Rail-basket R(a-type);hips,a-t		Appelez-nous	-
9	DA61-00290C		Rail-basket L(a-type);hips,a-t		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
