SELECT A DIAGRAM

01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

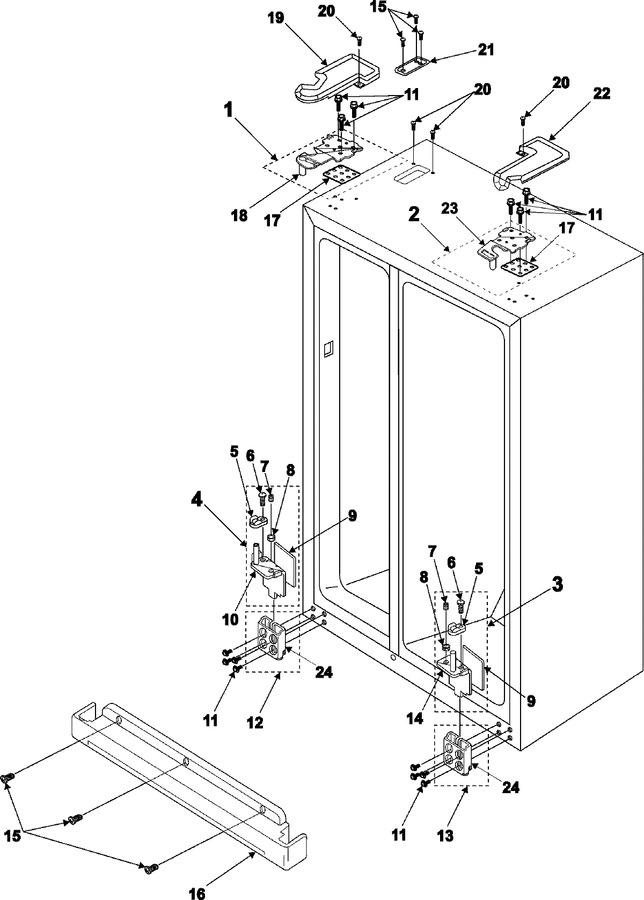

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-01873B		Assy Hinge-up L(50);a-top 50,1		Appelez-nous	-
2	DA97-01868B		Assy Hinge-up R(50);a-top 50,1		Appelez-nous	-
3	DA97-01763A		Assy Hinge Low-r;a-top,basic,1				$ 43.20
4	DA97-01760A		Assy Hinge Low		Appelez-nous	-
5	DA66-00268A		Cam-riser;usp-pjt,low Hinge,10				$ 3.23
6	6003-001435		Screw-taptite		Appelez-nous	-
7	6011-001442		Bolt-socket				$ 2.50
8	6021-001125		Nut-hexagon				$ 3.94
9	DA63-50207C		Shim Hinge-low		Appelez-nous	-
10	DA61-01607A		Hinge-low Fre;10.5mm,a-top,t4.		Appelez-nous	-
11	6009-001255		Screw-hex		Appelez-nous	-
14	DA61-01608A		Hinge-low Ref;10.5mm,a-top,t4.				$ 77.45
15	6002-001197		Screw-tapping;th,+,1,m4,l16,sn		Appelez-nous	-
16	DA63-00822L		Cover-leg Front		Appelez-nous	-
17	DA63-50192A		Shim-hinge Upp;abs,left				$ 2.39
18	DA61-01600B		Hinge-up L(50);10.5 Gasket,a-t		Appelez-nous	-
19	DA63-01035K		Cover Hinge-upp,l		Appelez-nous	-
20	6002-000471		Screw-tapping;th,+,1,m4,l12,-,				$ 0.85
21	DA63-01275A		Cover-tube Water		Appelez-nous	-
22	DA63-01036K		Cover Hinge-upp,r		Appelez-nous	-
23	DA61-01601B		Hinge-up R(50);10.5 Gasket,a-t		Appelez-nous	-
24	DA61-00459D		Bracket Hinge-low;50mm,a-top,s		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
