SELECT A DIAGRAM

01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

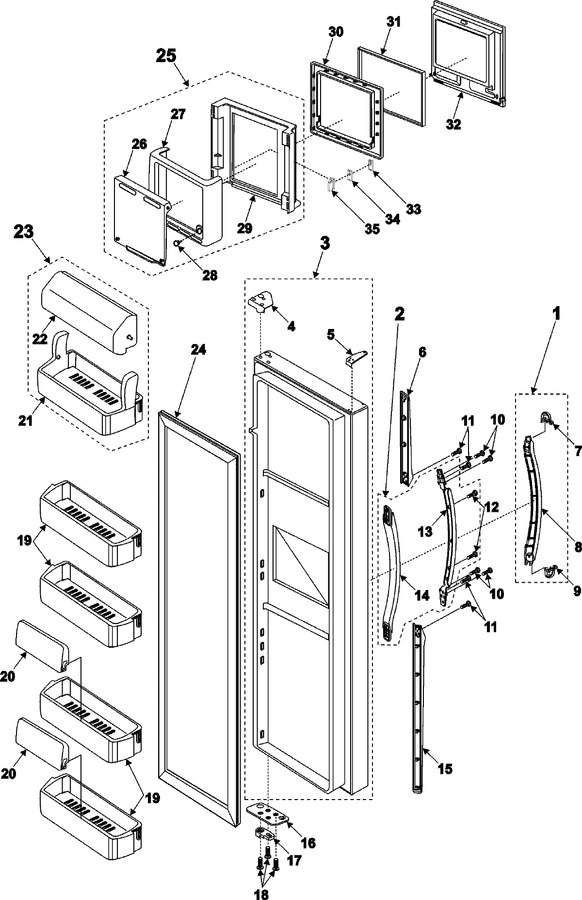

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00704H		Assy Handle-front				$ 19.53
2	DA97-00703A		Assy Handle-rear				$ 65.90
3	DA91-01606H		Assy Door Foam Ref		Appelez-nous	-
4	Y00000000		See Note Part No. Da67-00594a Currently Not Available.		Appelez-nous	-
5	DA67-00629A		Cap-door Mid R		Appelez-nous	-
6	DA64-00418B		Handle-trim Upp		Appelez-nous	-
7	DA64-00416B		Handle-trim Connect Upp		Appelez-nous	-
8	DA64-00413F		Handle-mid Front		Appelez-nous	-
9	DA64-00415B		Handle-trim Connect,low		Appelez-nous	-
10	6002-000213		Screw-tapping			Immediately	$ 0.93
11	6002-000613		Screw-tapping			Immediately	$ 0.85
12	6002-000227		Screw-tapping				$ 1.66
13	DA61-00309A		Reinf-handle Mid		Appelez-nous	-
14	DA64-00414B		Handle-mid Rear		Appelez-nous	-
15	DA64-00417B		Handle-trim Low				$ 17.21
16	DA61-00564A		Stopper Door		Appelez-nous	-
17	555555		Cam Hinge-riser,low   (Replaces: DA66-90112C)				$ 151.94
18	6001-000716		Screw-machine				$ 0.85
19	DA97-00161D		Assy Guard-ref Low(50);a-top,e		Appelez-nous	-
20	DA71-00090A		Guide-bottle Ref				$ 10.60
21	DA63-00852D		Guard-dairy(50);a-top,hips,coo				$ 93.61
22	DA63-00848A		Cover-guard		Appelez-nous	-
23	DA97-00160D		Assy Guard-dairy(50);a-top,exp				$ 130.03
24	DA97-01800D		Assy-gasket Door,ref;a-top,w46				$ 123.98
25	DA97-00164C		Assy Case-recess		Appelez-nous	-
26	DA63-00826A		Cover Door-recess		Appelez-nous	-
27	DA61-00308A		Case-door Recess,out		Appelez-nous	-
28	DA63-00991A		Grommet-door Recess		Appelez-nous	-
29	DA61-00310B		Case-door Recess,in(50);hips,a		Appelez-nous	-
30	DA63-00851B		Cover-bracket Frame		Appelez-nous	-
31	DA63-00850A		Gasket-home Bar Out		Appelez-nous	-
32	DA97-00547B		Assy Home Bar		Appelez-nous	-
33	Y00000000		See Note Part No. Da63-00219b Currently Not Available.		Appelez-nous	-
34	DA63-01100A		Gasket Home Bar-s/w		Appelez-nous	-
35	DA34-10121A		Switch-door				$ 28.04

    View Diagram in Separate Window       Print Part List
