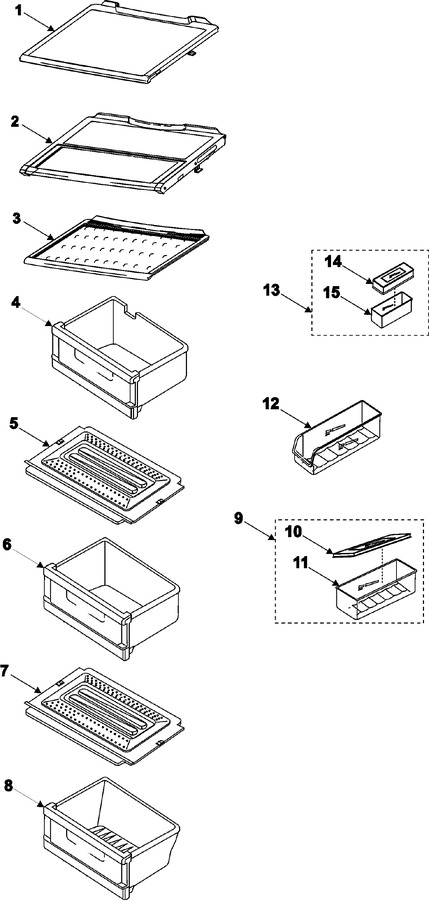

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA67-00516E		Shelf Ref-up(750);best-buy,pp,		Appelez-nous	-
2	DA97-00199N		Assy Shelf-fold;a-top(750lt),c		Appelez-nous	-
3	DA67-00517G		Shelf Ref-low(750);best-buy,pp		Appelez-nous	-
4	DA97-00174K		Assy Tray-chilled(750);a-top,e		Appelez-nous	-
5	DA63-00864C		Cover-veg Up(650);a-top,hips,c		Appelez-nous	-
6	555555		Assy Case-veg,up(750);a-top,ex   (Replaces: DA97-00144N)				$ 151.94
7	DA63-00865C		Cover-veg Low(650);a-top,hips,				$ 55.43
8	555555		Assy Case-veg,low(750);a-top,e   (Replaces: DA97-00148N)				$ 151.94
9	DA97-00169A		Assy-case Egg		Appelez-nous	-
10	DA63-10363A		Cover-egg		Appelez-nous	-
11	DA67-10144A		Case-egg		Appelez-nous	-
12	DA67-40250E		Tray-utility				$ 56.08
13	DA97-01288A		Assy-butter Dish		Appelez-nous	-
14	DA63-01689A		Cover-butter Dish		Appelez-nous	-
15	DA61-01262A		Case-butter Dish		Appelez-nous	-
