Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3131366 Brkt Glass (2) Appelez-nous -
2 3051148 Glass, Heat Barrier Appelez-nous -
3 3131321 Glass, Package Appelez-nous -
4 3131132 Glass, Front Appelez-nous -
5 3131256 Handle Appelez-nous -
6 3202147 Liner Appelez-nous -
7 3131601 Seal, Door Appelez-nous -
8 3202151 Shield, Wool Appelez-nous -
9 3131323 Supt. Glass (2) Appelez-nous -
10 3131128 Trim, Oven Door Appelez-nous -
11 3131720 Clip-retain. (2) Appelez-nous -
12 3131974 Fastnr-spacer (6) Appelez-nous -
13 3131102 Screw-hndl Mtg (2) Appelez-nous -
14 636T139P01 Screw Dr Mtg (3) Appelez-nous -
15 3131142 Extrusn Chnl (2) Appelez-nous -
16 3131322 Insul Wool Appelez-nous -
17 3131214 Seal, Foam (4) Appelez-nous -
15B 636T143P01 Screw Appelez-nous -
15C 636T143P05 Screw-dr Mtg (4) (non-illustrated) Appelez-nous -

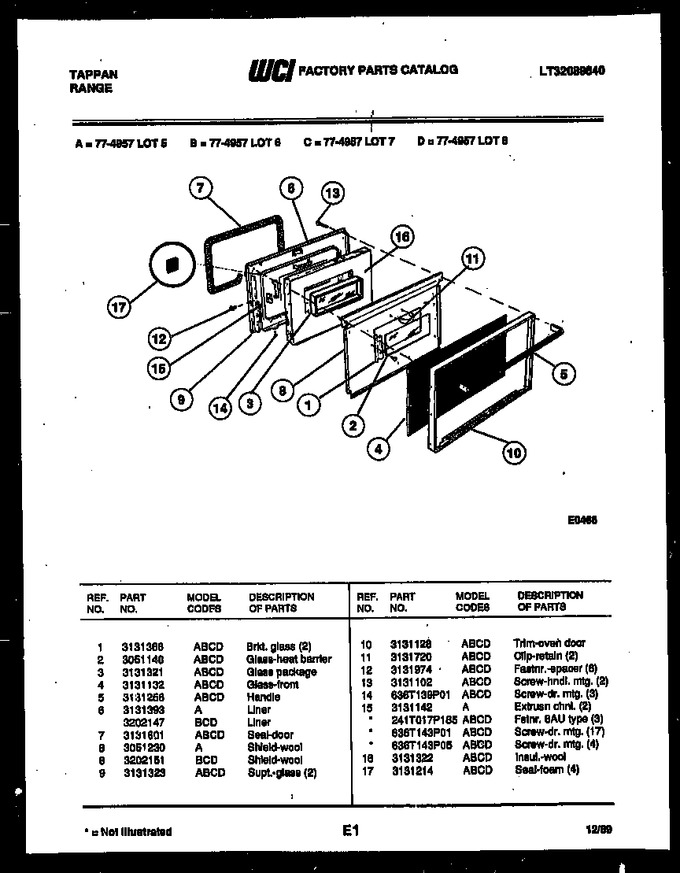

    View Diagram in Separate Window     Print Icon   Print Part List
