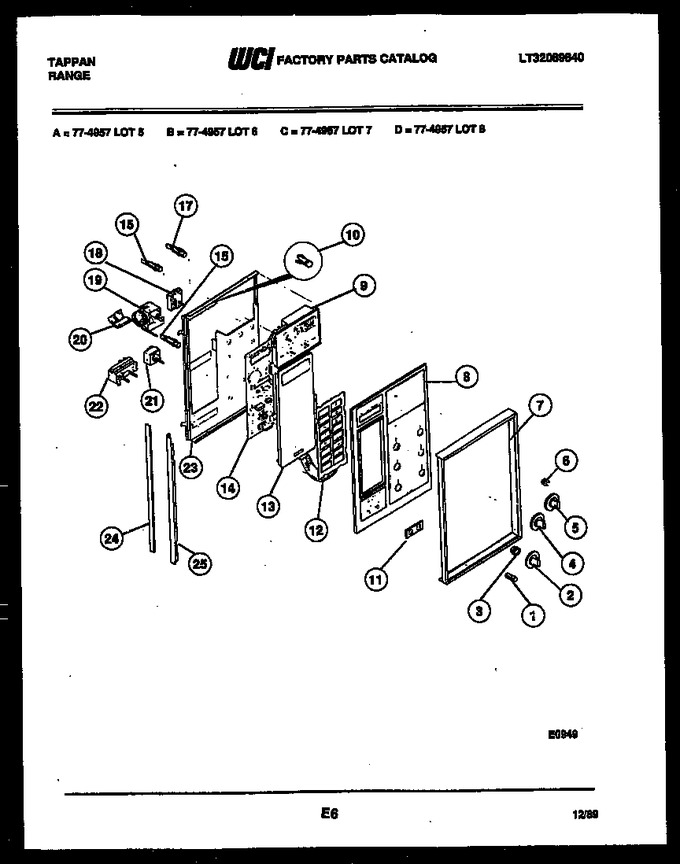

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	106T024P06		Buttn Push On-off (2)		Appelez-nous	-
2	3091393		Knob Contrl Inf. Sw (4)		Appelez-nous	-
3	102T019P01		Bushing C/p Glass		Appelez-nous	-
4	3051442		Knob Thermostat		Appelez-nous	-
5	3091392		Knob Selec Sw		Appelez-nous	-
6	358T201P01		Knob, Clock (3)		Appelez-nous	-
7	740T406P04		Trim Cntrl Panel		Appelez-nous	-
8	3091397		Glass-cntrl. Pnl. Asy.		Appelez-nous	-
9	3091385		Clock Digital		Appelez-nous	-
10	241T017P228		Fstnr.-clock Mtg. Twist Nut (3)		Appelez-nous	-
11	3091347		Bezel Selec Sw.		Appelez-nous	-
12	3091395		Sw Membrane Tch		Appelez-nous	-
13	511T048P01		Panel Sw Mtg		Appelez-nous	-
14	115T139P01		Circuit Board Printed		Appelez-nous	-
15	318T023P12		Indicator Light		Appelez-nous	-
17	318T023P11		Indicator Light (3)		Appelez-nous	-
18	3051315		Switch Selec 6 Pos.		Appelez-nous	-
19	3051320		Thermostat Oven		Appelez-nous	-
20	558T032P01		Plug Disconn 9 Pln		Appelez-nous	-
21	699T015P02		Switch Top Unit		Appelez-nous	-
22	697T047P04		Switch Selec 2 Pos		Appelez-nous	-
23	3091343		Panel Control		Appelez-nous	-
24	643T013P01		Seal, Microwave		Appelez-nous	-
25	174T188P02		Cover Micro Seal		Appelez-nous	-
*18992	665T175P01		Spacr Cntrl Mtg Pnl (2)		Appelez-nous	-
*18992	636T096P23		Screw Cntrl Pnl (12)		Appelez-nous	-
14A	636T090P51		Screw Circuit Brd Mtg (4) (non-illustrated)		Appelez-nous	-
22A	636T096P01		Screw Selec Sw. (non-illustrated)		Appelez-nous	-
23A	636T046P02		Screw Panel Mtg (non-illustrated)		Appelez-nous	-
7A	636T046P02		Screw Trim Mtg (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
