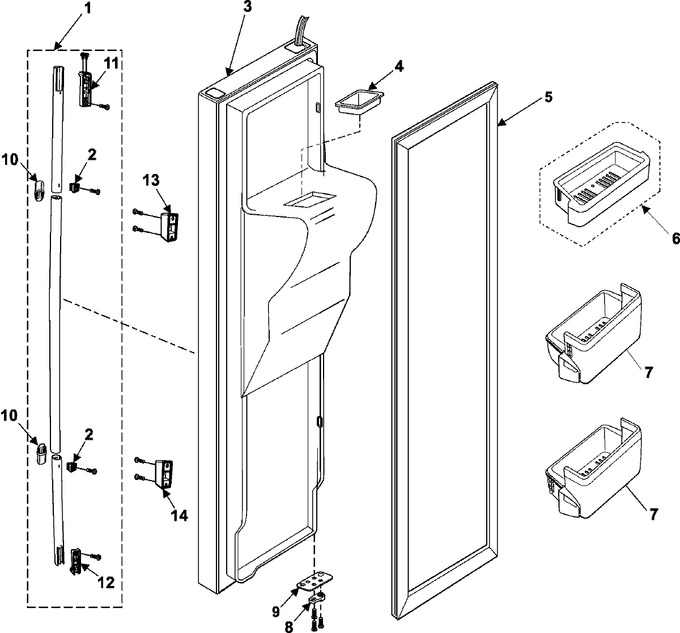

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02829E		Assy Handle;best-buy 05,alumin		Appelez-nous	-
2	DA63-02552A		Grommet-fixer Handle				$ 0.85
3	555555		Assy Door Foam Fre;a-top(24/26   (Replaces: DA91-02180D)				$ 151.94
4	DA67-00537B		Cap-chute Ice(50);a-top,cool-w		Appelez-nous	-
5	DA97-01800C		Assy-gasket Door,fre;a-top,w34		Appelez-nous	-
6	DA97-03269A		Assy Guard Fre-upp;lowes05,dis				$ 37.08
7	DA63-00842C		Guard-fre Low,a(50);a-top,hips		Appelez-nous	-
8	DA66-00344A		Cam-hinge Riser Low				$ 1.66
9	DA61-00564A		Stopper Door		Appelez-nous	-
10	DA64-01533A		Trim-handle Mid				$ 17.27
11	DA67-00773A		Cap-handle				$ 26.78
12	DA67-00796A		Cap-handle Low		Appelez-nous	-
13	DA61-02176D		Support-handle Up;a-top M/c,ab		Appelez-nous	-
14	DA61-02177D		Support-handle Low;a-top M/c,a		Appelez-nous	-
