SELECT A DIAGRAM

01 - Enclosure


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Ice Maker


09 - Machine Compartment-compressor


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

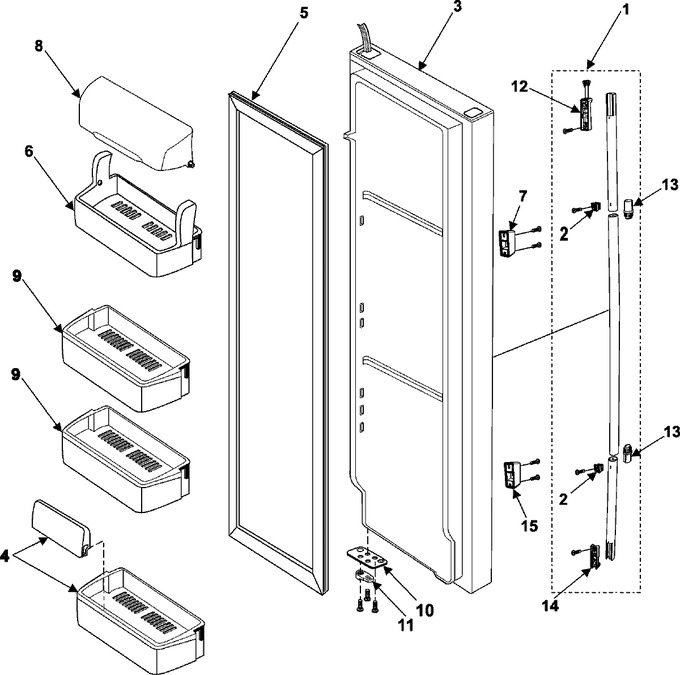

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-02810E		Assy Cover Evap-ref;rs255ba,bl				$ 242.92
2	DA63-02552A		Grommet-fixer Handle				$ 0.85
3	DA91-02181D		Assy Door Foam Ref;a-top(24/26		Appelez-nous	-
4	DA71-00090A		Guide-bottle Ref				$ 10.60
5	DA97-01800D		Assy-gasket Door,ref;a-top,w46				$ 123.98
6	DA63-00852D		Guard-dairy(50);a-top,hips,coo				$ 93.61
7	DA61-02176D		Support-handle Up;a-top M/c,ab		Appelez-nous	-
8	DA63-00848B		Cover-guard;a-top,gpps,2.5,-,-				$ 35.15
9	DA97-03290A		Assy Guard Ref-low;a-top,50mm				$ 72.50
10	DA61-00564A		Stopper Door		Appelez-nous	-
11	DA66-00344A		Cam-hinge Riser Low				$ 1.66
12	DA67-00773A		Cap-handle				$ 26.78
13	DA64-01533A		Trim-handle Mid				$ 17.27
14	DA67-00796A		Cap-handle Low		Appelez-nous	-
15	DA61-02177D		Support-handle Low;a-top M/c,a		Appelez-nous	-
NI	6001-001458		Screw-machine		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
