SELECT A DIAGRAM

01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

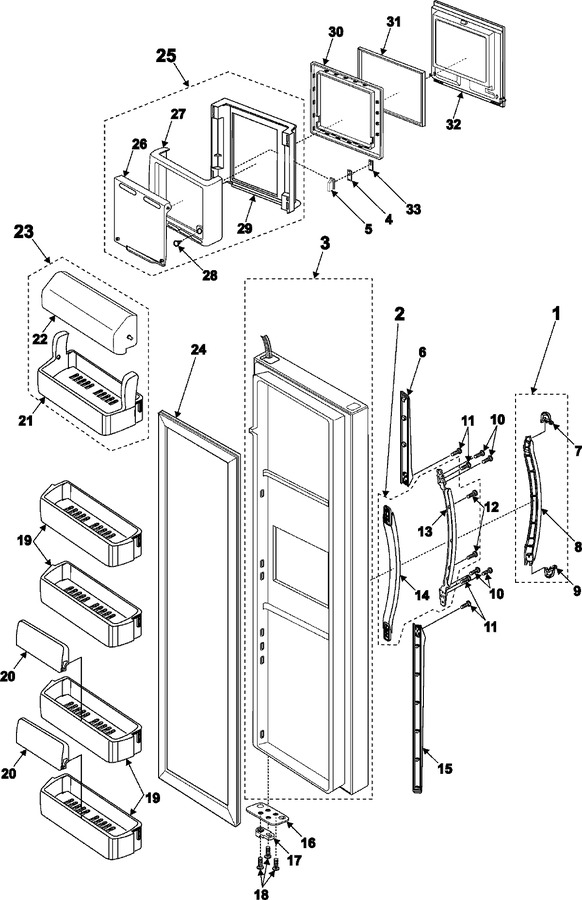

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00704B		Assy Handle-front		Appelez-nous	-
2	DA97-00703B		Assy Handle-rear		Appelez-nous	-
3	DA91-01606B		Assy Door Foam Ref		Appelez-nous	-
4	DA63-01100D		Gasket Home Bar-s/w		Appelez-nous	-
5	DA34-10121A		Switch-door				$ 28.04
6	DA64-00418C		Handle-trim Upp		Appelez-nous	-
7	DA64-00416C		Handle-trim Connect,upp		Appelez-nous	-
8	DA64-00413C		Handle-mid Front		Appelez-nous	-
9	DA64-00415C		Handle-trim Connect,low		Appelez-nous	-
10	6002-000213		Screw-tapping			Immediately	$ 0.93
11	6002-000613		Screw-tapping			Immediately	$ 0.85
12	6002-000480		Screw-tapping		Appelez-nous	-
13	DA61-00309A		Reinf-handle Mid		Appelez-nous	-
14	DA64-00414C		Handle-mid Rear		Appelez-nous	-
15	DA64-00417C		Handle-trim Low				$ 35.02
16	DA61-00430A		Stopper Door				$ 14.72
17	DA66-00344A		Cam-hinge Riser Low				$ 1.66
18	6001-001458		Screw-machine		Appelez-nous	-
19	DA97-00696D		Assy Guard-ref Low;a-top,exp,p				$ 84.33
20	DA71-00090A		Guide-bottle Ref				$ 10.60
21	DA63-00836D		Guard-dairy(85);a-top,hips,coo				$ 74.73
22	DA63-00825A		Cover-guard				$ 38.14
23	DA97-00697D		Assy Guard-dairy(85);a-top,exp				$ 97.82
24	DA97-01800D		Assy-gasket Door,ref;a-top,w46				$ 123.98
25	DA97-00801J		Assy-case Door Recess;a-top(25		Appelez-nous	-
26	DA63-00826A		Cover Door-recess		Appelez-nous	-
27	DA61-00308A		Case-door Recess,out		Appelez-nous	-
28	DA63-00991A		Grommet-door Recess		Appelez-nous	-
29	DA61-00306B		Case-door Recess,in(85);hips,a		Appelez-nous	-
30	DA63-00851C		Cover-bracket Frame		Appelez-nous	-
31	DA63-00850C		Gasket-home Bar,out;a-top,sf-p		Appelez-nous	-
32	DA97-00547C		Assy Home Bar		Appelez-nous	-
33	DA63-00219F		Cover Switch-home Bar		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
