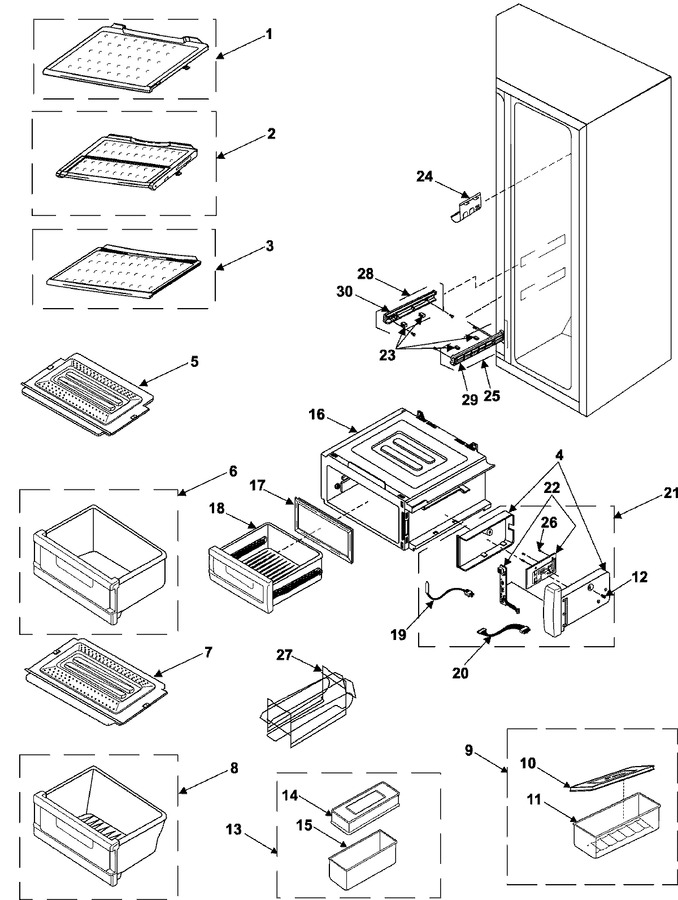

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DA67-00516E | Shelf Ref-up(750);best-buy,pp, |
|
- | |||||
| 2 | DA97-00199N | Assy Shelf-fold;a-top(750lt),c |
|
- | |||||
| 3 | DA67-00686A | Shelf Ref-low |
|
- | |||||
| 4 | DA61-00277C | Case Control-convertible |
|
- | |||||
| 5 | DA63-00864C | Cover-veg Up(650);a-top,hips,c |
|
- | |||||
| 6 | 555555 | Assy Case-veg,up(750);a-top,ex (Replaces: DA97-00144N) |
|
$ 151.94 | |||||
| 7 | DA63-00865C | Cover-veg Low(650);a-top,hips, |
|
$ 55.43 | |||||
| 8 | 555555 | Assy Case-veg,low(750);a-top,e (Replaces: DA97-00148N) |
|
$ 151.94 | |||||
| 9 | DA97-00169A | Assy-case Egg |
|
- | |||||
| 10 | DA63-10363A | Cover-egg |
|
- | |||||
| 11 | DA67-10144A | Case-egg |
|
- | |||||
| 12 | 6002-000213 | Screw-tapping |
|
Immediately | $ 0.93 | ||||
| 13 | DA97-01288A | Assy-butter Dish |
|
- | |||||
| 14 | DA63-01689A | Cover-butter Dish |
|
- | |||||
| 15 | DA61-01262A | Case-butter Dish |
|
- | |||||
| 16 | DA97-02087M | Assy-case-convertible |
|
- | |||||
| 17 | DA63-01783C | Gasket-convertible;a-top,sf-pv |
|
- | |||||
| 18 | 555555 | Assy Tray-convertible(750);a-t (Replaces: DA97-00371J) |
|
$ 151.94 | |||||
| 19 | DA32-10109X | Sensor Assy |
|
$ 25.99 | |||||
| 20 | DA39-00215A | Wire Harness |
|
- | |||||
| 21 | DA97-00370G | Assy Case-convertable Sub |
|
- | |||||
| 22 | DA41-00108A | Pba Sub |
|
$ 129.69 | |||||
| 23 | DA63-02079A | Grommet-rail(a,b-type);a-top,n |
|
- | |||||
| 24 | DA67-00145B | Shelf-wine;a-top,hips,cool-whi |
|
- | |||||
| 25 | DA61-00291C | Rail-basket R(a-type);hips,a-t |
|
- | |||||
| 26 | 6002-000389 | Screw Tapping;ph,+,2,m3,l1o |
|
- | |||||
| 27 | DA61-01220A | Case-wire Can,carry |
|
- | |||||
| 28 | DA97-00731F | Assy Rail-basket L(b-type);a-t |
|
- | |||||
| 29 | DA97-00730F | Assy Rail-basket R(b-type);a-t |
|
$ 8.60 | |||||
| 30 | DA61-00290C | Rail-basket L(a-type);hips,a-t |
|
- |
