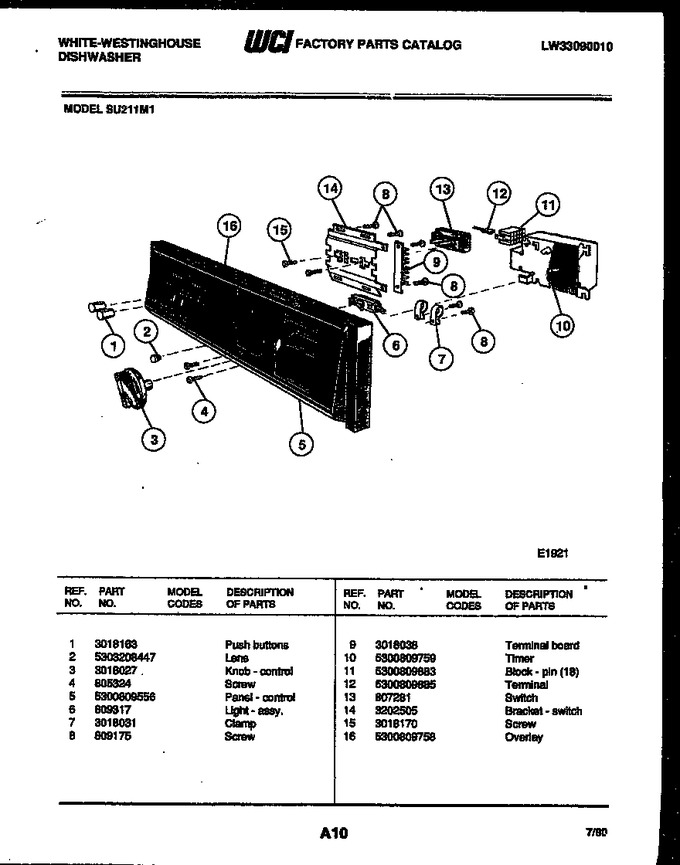

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018163 | Pushbuttons |
|
- | |||||
| 2 | 5303208447 | Lens |
|
- | |||||
| 3 | 3018027 | Knob-control |
|
- | |||||
| 4 | 805324 | Screw |
|
- | |||||
| 5 | 5300809556 | Panel Control |
|
- | |||||
| 6 | 809317 | Light-assy |
|
- | |||||
| 7 | 3018031 | Clamp |
|
- | |||||
| 8 | 809175 | Screw |
|
- | |||||
| 9 | 3018038 | Terminal Board |
|
- | |||||
| 10 | 5300809759 | Timer |
|
- | |||||
| 11 | 5300809883 | Block - Pin (18) |
|
- | |||||
| 12 | 5300809885 | Terminal |
|
- | |||||
| 13 | 307281 | Switch |
|
- | |||||
| 14 | 3202505 | Bracket Switch |
|
- | |||||
| 15 | 3018170 | Screw |
|
- | |||||
| 16 | 5300809758 | Overlay |
|
- |
