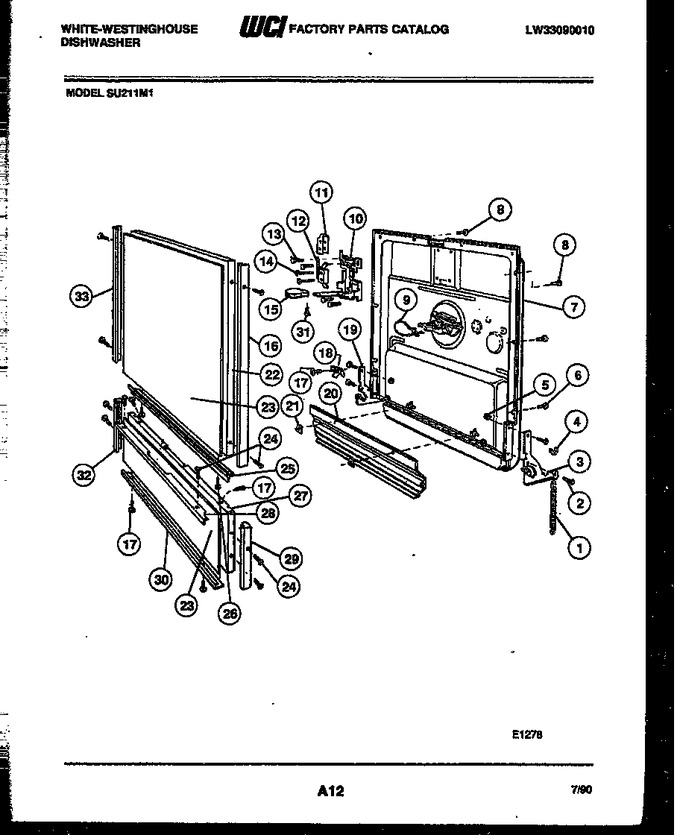

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809360		Spring - Door		Appelez-nous	-
2	3018056		Screw		Appelez-nous	-
3	805681		Arm Assy. - Rh		Appelez-nous	-
4	3014666		Pad Spring		Appelez-nous	-
5	3018052		Nut		Appelez-nous	-
6	WP7101P126-60		Screw   (Replaces: 809055)			Immediately	$ 6.85
7	3202535		Door Assy.		Appelez-nous	-
8	808749		Screw		Appelez-nous	-
9	809075		Tie - Wire		Appelez-nous	-
10	807016		Latch Assy.		Appelez-nous	-
11	3018041		Cover - Switch		Appelez-nous	-
12	5303018043		Switch		Appelez-nous	-
13	809029		Screw		Appelez-nous	-
14	3018042		Screw		Appelez-nous	-
15	808712		Knob Latch		Appelez-nous	-
16	3018044		Trim-door Rh		Appelez-nous	-
17	3018067		Screw		Appelez-nous	-
18	3018047		Terminal Grounding		Appelez-nous	-
19	805682		Arm Assy. - Lh		Appelez-nous	-
20	3202539		Baffle Seal		Appelez-nous	-
21	809026		Speednut		Appelez-nous	-
22	807262		Panel-door (white)		Appelez-nous	-
23	808911		Toast		Appelez-nous	-
23	808916		Coffee		Appelez-nous	-
23	5300808914		White		Appelez-nous	-
23	808913		Black		Appelez-nous	-
23	808908		Almond		Appelez-nous	-
23	808909		Avocado		Appelez-nous	-
23	808910		Platinum		Appelez-nous	-
23	808912		Wheat		Appelez-nous	-
24	WP355214		Screw   (Replaces: 809752)			Immediately	$ 7.26
25	COMM PART		Trim-door Bottom   (Replaces: 807347)		Appelez-nous	-
26	3018065		Screw		Appelez-nous	-
27	809108		Panel-access (white)		Appelez-nous	-
28	3202527		Trim - Access - Top		Appelez-nous	-
29	3018185		Trim - Access - Rh		Appelez-nous	-
30	3202528		Trim - Access - Bottom		Appelez-nous	-
31	809163		Screw		Appelez-nous	-
32	3018182		Trim-access Lh		Appelez-nous	-
33	3018061		Trim-door Lh		Appelez-nous	-
*33307	808926		Black Acrylic Door Kit - Optional		Appelez-nous	-
*33307	808936		Wood Door Trim Kit - Optional		Appelez-nous	-
