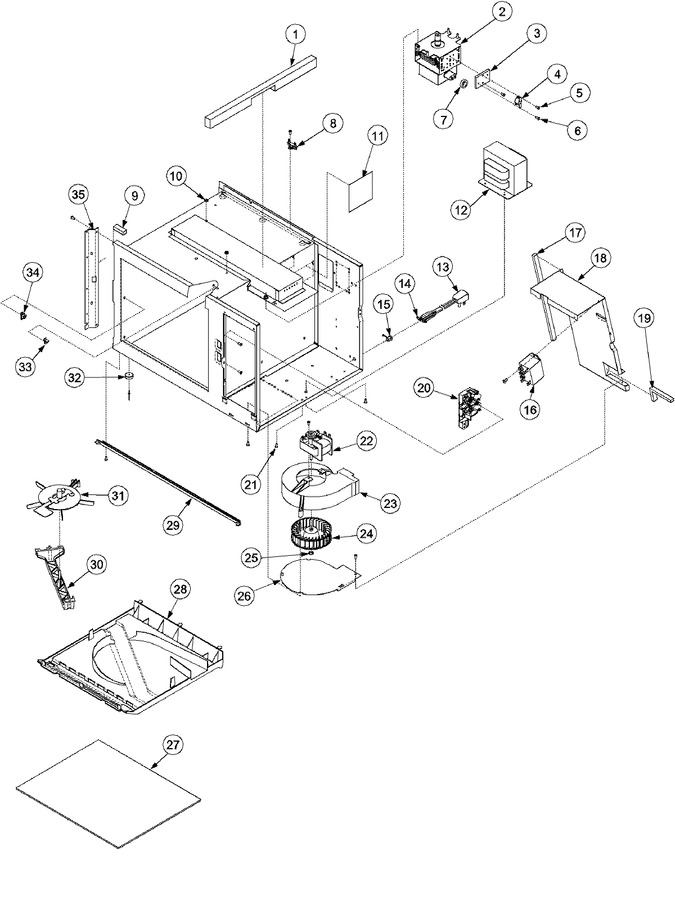

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8369901		Gasket, Oven Top		Appelez-nous	-
2	12096201		Magnetron		Appelez-nous	-
3	B8380601		Plate, Thermal Cutout		Appelez-nous	-
3	M0229916		Screw T.c		Appelez-nous	-
4	B5684106		Thermal Protector		Appelez-nous	-
5	M0229916		Screw T.c		Appelez-nous	-
6	M0232012		Screw		Appelez-nous	-
7	44780P01		Toroid (arc Suppressor)		Appelez-nous	-
8	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
8	B5795305		Fuse, Thermal		Appelez-nous	-
9	A3030301		Gasket (inch)		Appelez-nous	-
10	M0288808		Nut		Appelez-nous	-
11	B8367701		Window, Oven Light		Appelez-nous	-
12	D7686914		Transformer		Appelez-nous	-
12	59001052		Screw		Appelez-nous	-
14	M0325501		Insulator, Pod K		Appelez-nous	-
15	M0370009		Relief- Strain		Appelez-nous	-
16	12492202		Relay		Appelez-nous	-
16	M0216517		Screw		Appelez-nous	-
17	A3030302		Gasket		Appelez-nous	-
18	D7685413		Blower Partition,black E Ct		Appelez-nous	-
19	A3030302		Gasket		Appelez-nous	-
20	M0216517		Screw		Appelez-nous	-
20	12360503		Switch, Interlock		Appelez-nous	-
21	M0231717		Screw, Tf		Appelez-nous	-
22	D7670307		Motor, Blower		Appelez-nous	-
22	M0213123		Screw		Appelez-nous	-
23	D7684601		Scroll, Blower		Appelez-nous	-
24	C8793501		Blower Wheel		Appelez-nous	-
25	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
26	C8942501		Brkt Scroll		Appelez-nous	-
27	C8936902		Tray-glass Floor		Appelez-nous	-
28	D7692501		Grease Shield		Appelez-nous	-
28	W10841140		Sealer   (Replaces: M0275598)			Immediately	$ 24.92
29	12667301		Trim,oc		Appelez-nous	-
29	M0231617		Screw,tf		Appelez-nous	-
30	D7685505		Cradle, Antenna		Appelez-nous	-
31	C8943002Q		Assy, Antenna				$ 10.85
32	A4539625		Pop Rivet		Appelez-nous	-
32	B5732506		Foot O.c. Wrapper		Appelez-nous	-
33	B8374901		Support, Shelf		Appelez-nous	-
34	B8371001		Support Rack		Appelez-nous	-
35	M0231717		Screw, Tf		Appelez-nous	-
35	C8935903		Brkt,hinge Support		Appelez-nous	-
