Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 59001062 Timer Appelez-nous -
1 WP59002061 Screwxxx   (Replaces: M0216616) Special Order $ 6.98

2 12492101 Switch, Start Appelez-nous -
2 M0213815 Screw Appelez-nous -
3 12471402 Brkt,control(e-ct) Appelez-nous -
4 12487801 Button, Push Appelez-nous -
5 59001063 Thinplate Appelez-nous -
6 12360802 Knob, Timer Appelez-nous -
7 B5785708 Light, Pilot Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

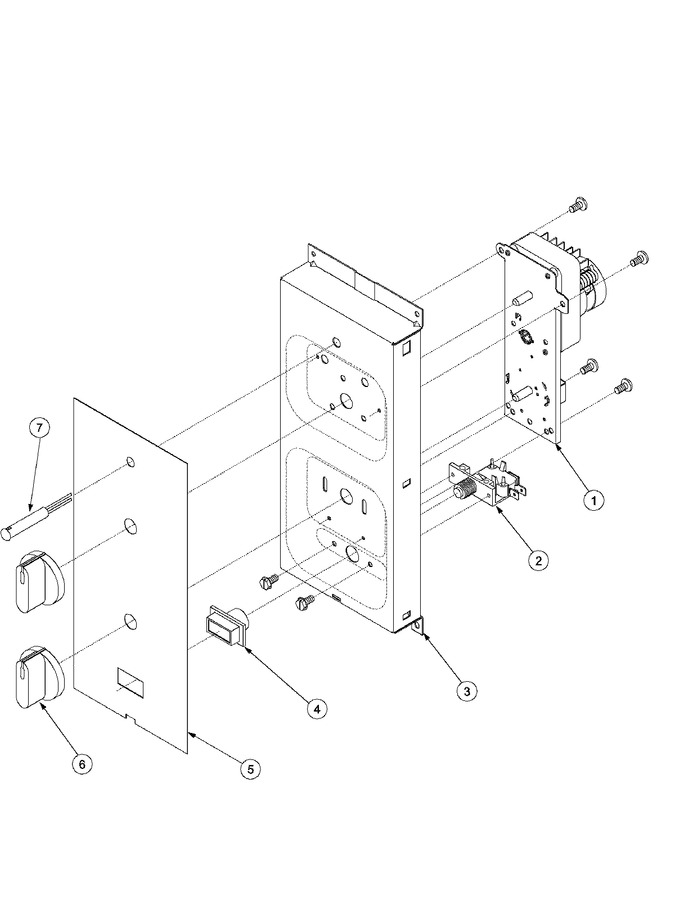

Diagram for RS511M (BOM: P1327801M)
