SELECT A DIAGRAM

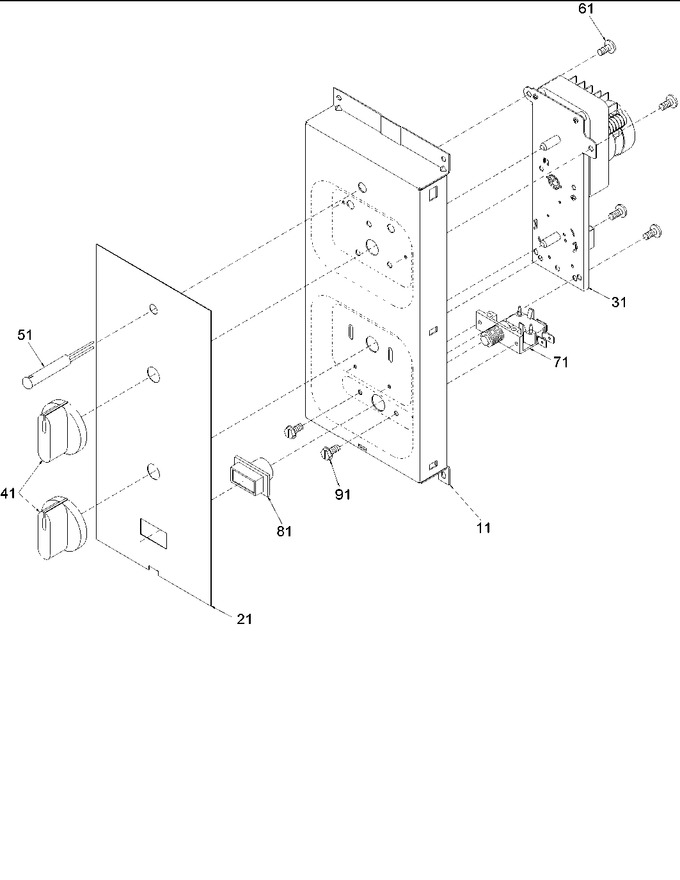

01 - Control Panel Assembly
02 - Door Assembly
03 - Internal Components
04 - Outer Cabinet
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 12471402 | Brkt,control(e-ct) |
|
- | |||||
| 21 | 12487904 | Thinplate, Control |
|
- | |||||
| 31 | 12492901 | Timer, 30 Minute |
|
- | |||||
| 41 | 12360802 | Knob, Timer |
|
- | |||||
| 51 | B5785708 | Light, Pilot |
|
- | |||||
| 61 | WP59002061 | Screwxxx (Replaces: M0216616) |
|
$ 6.98 | |||||
| 71 | 12492101 | Switch, Start |
|
- | |||||
| 81 | 12487801 | Button, Push |
|
- | |||||
| 91 | M0213815 | Screw |
|
- |
