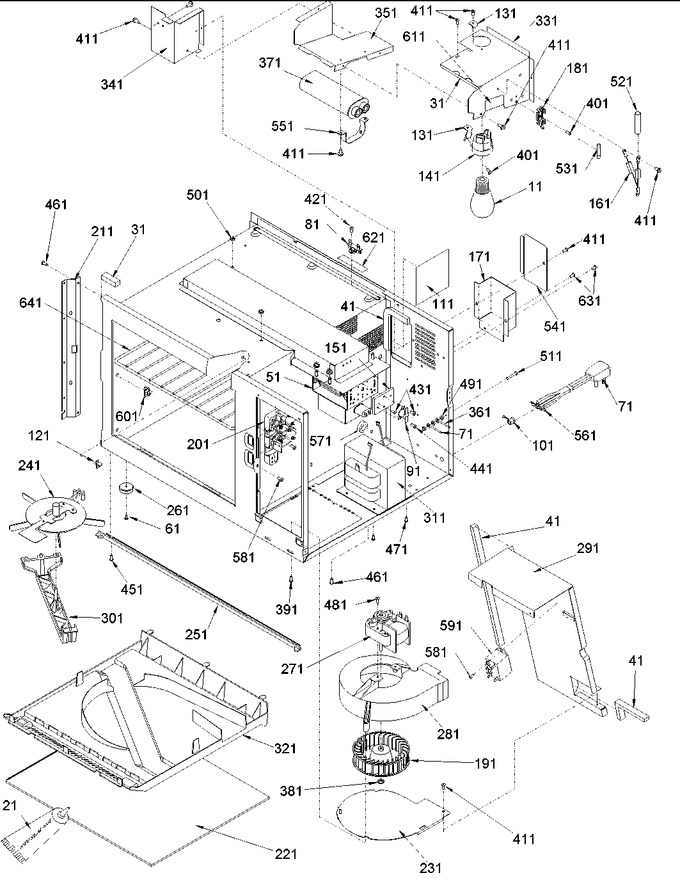

01 - Control Panel Assembly
02 - Door Assembly
03 - Internal Components
04 - Outer Cabinet
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | WP67002552 | Bulb, Light(240) (Replaces: A0282802) |
|
Immediately | $ 10.58 | ||||
| 21 | W10841140 | Sealer (Replaces: M0275598) |
|
Immediately | $ 24.92 | ||||
| 31 | A3030301 | Gasket (inch) |
|
- | |||||
| 41 | A3030302 | Gasket |
|
- | |||||
| 51 | 12096201 | Magnetron |
|
- | |||||
| 61 | A4539625 | Pop Rivet |
|
- | |||||
| 71 | B5669028 | Cord,power |
|
- | |||||
| 81 | B5795305 | Fuse, Thermal |
|
- | |||||
| 91 | B5684106 | Thermal Protector |
|
- | |||||
| 101 | M0370009 | Relief- Strain |
|
- | |||||
| 111 | B8367701 | Window, Oven Light |
|
- | |||||
| 121 | B8374901 | Support, Shelf |
|
- | |||||
| 131 | B8376701 | Bracket, Light |
|
- | |||||
| 141 | B8376801 | Socket, Light |
|
- | |||||
| 151 | B8380601 | Plate, Thermal Cutout |
|
- | |||||
| 161 | 10649001 | Rectifier |
|
- | |||||
| 171 | C8988002 | Cover,air Duct |
|
- | |||||
| 181 | 12136503 | Block-1 Pole Fuse |
|
$ 5.70 | |||||
| 191 | C8793501 | Blower Wheel |
|
- | |||||
| 201 | 12360503 | Switch, Interlock |
|
- | |||||
| 211 | C8935903 | Brkt,hinge Support |
|
- | |||||
| 221 | C8936902 | Tray-glass Floor |
|
- | |||||
| 231 | C8942501 | Brkt Scroll |
|
- | |||||
| 241 | C8943002Q | Assy, Antenna |
|
$ 10.85 | |||||
| 251 | C8943602 | Trim |
|
- | |||||
| 261 | B5732506 | Foot O.c. Wrapper |
|
- | |||||
| 271 | D7670307 | Motor, Blower |
|
- | |||||
| 281 | D7684601 | Scroll, Blower |
|
- | |||||
| 291 | D7685413 | Blower Partition,black E Ct |
|
- | |||||
| 301 | D7685505 | Cradle, Antenna |
|
- | |||||
| 311 | D7686914 | Transformer |
|
- | |||||
| 321 | D7692501 | Grease Shield |
|
- | |||||
| 331 | D7772007 | Duct, Top Air |
|
- | |||||
| 341 | D7772101 | Shield, Light |
|
- | |||||
| 351 | D7772202 | Air Duct. Bottom |
|
- | |||||
| 361 | 12490501 | Harness, Oven |
|
- | |||||
| 371 | 12548812 | Capacitor-1.21 |
|
- | |||||
| 381 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 | |||||
| 391 | M0254706 | Screw |
|
- | |||||
| 401 | WP59002061 | Screwxxx (Replaces: M0216616) |
|
$ 6.98 | |||||
| 411 | M0231704 | Screw, Tf |
|
- | |||||
| 421 | WPW10068250 | Screw (Replaces: M0234029) |
|
$ 3.66 | |||||
| 431 | M0229916 | Screw T.c |
|
- | |||||
| 441 | M0232012 | Screw |
|
- | |||||
| 451 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 461 | M0231717 | Screw, Tf |
|
- | |||||
| 471 | M0251030 | Screw |
|
- | |||||
| 481 | M0213123 | Screw |
|
- | |||||
| 491 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 501 | M0288808 | Nut |
|
- | |||||
| 511 | M0293502 | Stud-self Clinch |
|
- | |||||
| 521 | M0322602 | Sleeve, Wire |
|
- | |||||
| 531 | 14QBP12CSB | Fuse, 12 Amp (Replaces: M0805105) |
|
$ 1.65 | |||||
| 541 | B8370702 | Cover, Light |
|
- | |||||
| 551 | A4055406 | Strap, Capacitor |
|
- | |||||
| 561 | M0325501 | Insulator, Pod K |
|
- | |||||
| 571 | 44780P01 | Toroid (arc Suppressor) |
|
- | |||||
| 581 | M0216517 | Screw |
|
- | |||||
| 591 | 12492202 | Relay |
|
- | |||||
| 601 | B8371001 | Support Rack |
|
- | |||||
| 611 | M0275051 | 4.25`` Tape-poly |
|
- | |||||
| 621 | M0275157 | Tape, Protective |
|
- | |||||
| 631 | 489392 | Screw-``y``drive Headxxx (Replaces: M0237618) |
|
$ 12.02 | |||||
| 641 | D7780102 | Oven Rack |
|
- |
