01 - Cabinet Assy

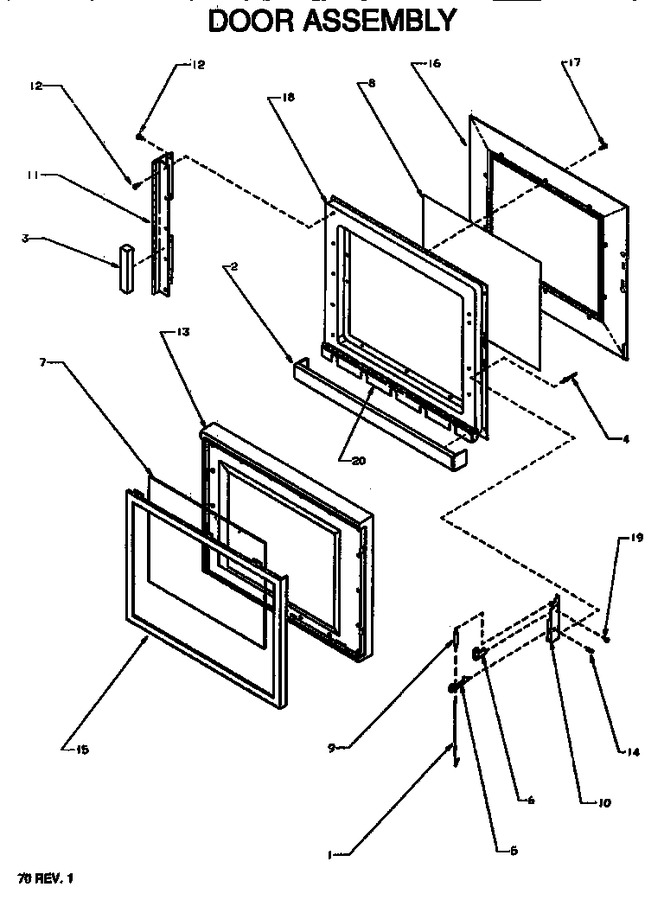

02 - Door Assy


03 - Electrical


04 - Electrical (cont.)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A1050103		Connecting Rod A		Appelez-nous	-
2	D7683610		Cover, Handle (white)		Appelez-nous	-
3	A3263904		Gasket		Appelez-nous	-
4	A4539601		Pop Rivet		Appelez-nous	-
5	B8370301		Latch Dr K		Appelez-nous	-
6	B8370401		Guide, Door K		Appelez-nous	-
7	D7534008		Window Outer		Appelez-nous	-
8	B8371202		Window, Inner		Appelez-nous	-
9	C8893502		Spring, Door Latch		Appelez-nous	-
10	C8936101		Bracket Dr Latch K		Appelez-nous	-
11	C8936210		Door Hinge Pnt		Appelez-nous	-
11	10809402		Door Hinge (white)		Appelez-nous	-
12	M0234016		Screw		Appelez-nous	-
13	10810101		Door, Outer (white)		Appelez-nous	-
13	D7683211		Door Outer		Appelez-nous	-
14	M1200107		Pin Roll K		Appelez-nous	-
15	D7683405		Retainer, Lens		Appelez-nous	-
16	D7683505		Door, Inner V		Appelez-nous	-
17	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.02
18	D7683708		Weldment-inner Door		Appelez-nous	-
19	M0010214		Rivet A K		Appelez-nous	-
20	D7670003		Door Handle		Appelez-nous	-
