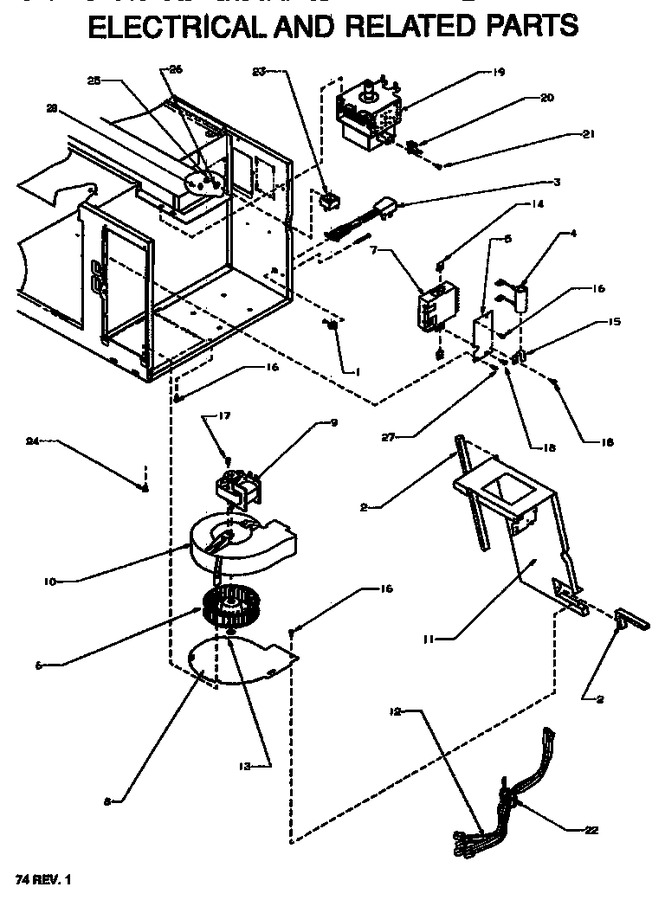

SELECT A DIAGRAM

01 - Cabinet Assy


02 - Door Assy


03 - Electrical


04 - Electrical (cont.)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0370009		Relief- Strain		Appelez-nous	-
2	A3030302		Gasket		Appelez-nous	-
3	B5669013		Cord-power		Appelez-nous	-
4	C8981603		Ass`y, Resistor		Appelez-nous	-
5	B8370602		Bracket S.w. Mtg		Appelez-nous	-
6	C8793501		Blower Wheel		Appelez-nous	-
7	C8935801		Switch, Interlock		Appelez-nous	-
8	C8942501		Brkt Scroll		Appelez-nous	-
9	D7670302		Motor, Blower		Appelez-nous	-
10	D7684601		Scroll, Blower		Appelez-nous	-
11	D7685409		Blower Partition,black E Ct		Appelez-nous	-
12	10364601		Harness, Wiring		Appelez-nous	-
13	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
14	M0288213		Clip		Appelez-nous	-
15	C8985901		Bracket		Appelez-nous	-
16	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
17	M0213123		Screw		Appelez-nous	-
18	M0216517		Screw		Appelez-nous	-
19	10489401		Magnetron		Appelez-nous	-
20	B5795306		Thermal Cutout		Appelez-nous	-
21	M0251818		Screw		Appelez-nous	-
22	M0321209		Tie-elect.		Appelez-nous	-
23	B8355401		Temp Probe Jack K		Appelez-nous	-
24	M0254706		Screw		Appelez-nous	-
25	M0281405		Nut K		Appelez-nous	-
26	M0270536		Washer		Appelez-nous	-
27	M0251002		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
