Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67013-1 Liner, Door Appelez-nous -
1 65275-5 Screw Appelez-nous -
2 67670-2 Gasket, Frz. Door Appelez-nous -
3 67032-5 Retainer, Door Seal Appelez-nous -
4 67032-1 Retainer, Door Seal Appelez-nous -
5 67718-9 Trim, Door Shelf Appelez-nous -
6 67209-1 Endcap, Shelf Trim Frz. Rh Appelez-nous -
6 67207-1 Endcap Shelf Trim, Freezer Lh Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

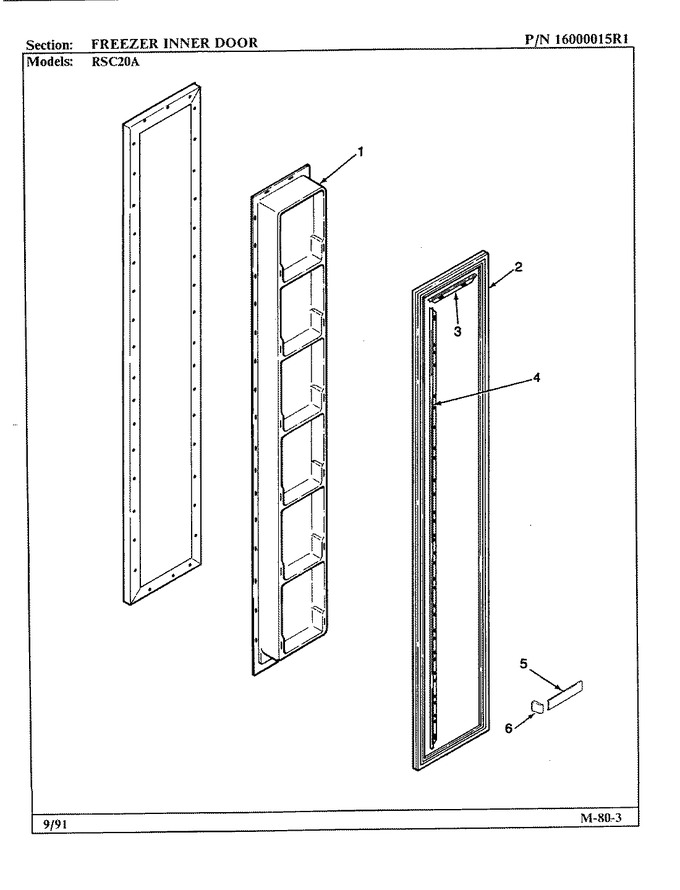

Diagram for RSC20A (BOM: BM01A)
