Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67018-1 Liner, Door Appelez-nous -
2 28272-6 Bumper, Door Appelez-nous -
3 67032-3 Retainer, Door Seal Appelez-nous -
4 67032-1 Retainer, Door Seal Appelez-nous -
5 67670-1 Gasket, F.f. Door Appelez-nous -
6 65275-5 Screw Appelez-nous -
7 67041-4 Door, Dairy Appelez-nous -
8 67216-1 Tray, Butter Appelez-nous -
9 67215-1 Tray, Egg Appelez-nous -
10 67195-2 Organizer Appelez-nous -
10 67195-1 Organizer Appelez-nous -
11 67718-10 Trim, Door Shelf Appelez-nous -
12 67208-1 Endcap, Shelf Trim Special Order $ 11.62

12 67212-2 Endcap, Shelf Trim F.f. Rh Appelez-nous -
13 67718-15 Trim Appelez-nous -
14 67212-3 Endcap, Shelf Trim F.f. Rh Appelez-nous -
14 67208-2 Endcap, Shelf Trim F.f. Lh Appelez-nous -
15 67718-19 Trim Appelez-nous -
16 67608-1 Endcap, Shelf Ref Rh Appelez-nous -
16 67213-1 Endcap, Shelf Trim (sand Beige Special Order $ 9.86


    View Diagram in Separate Window     Print Icon   Print Part List

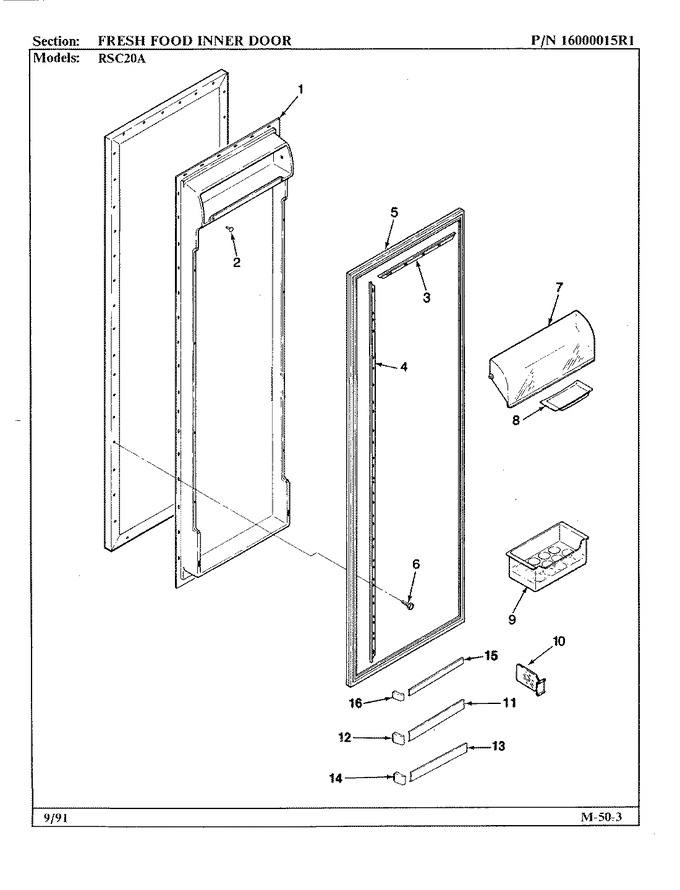

Diagram for RSC20A (BOM: BM01A)
