SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door

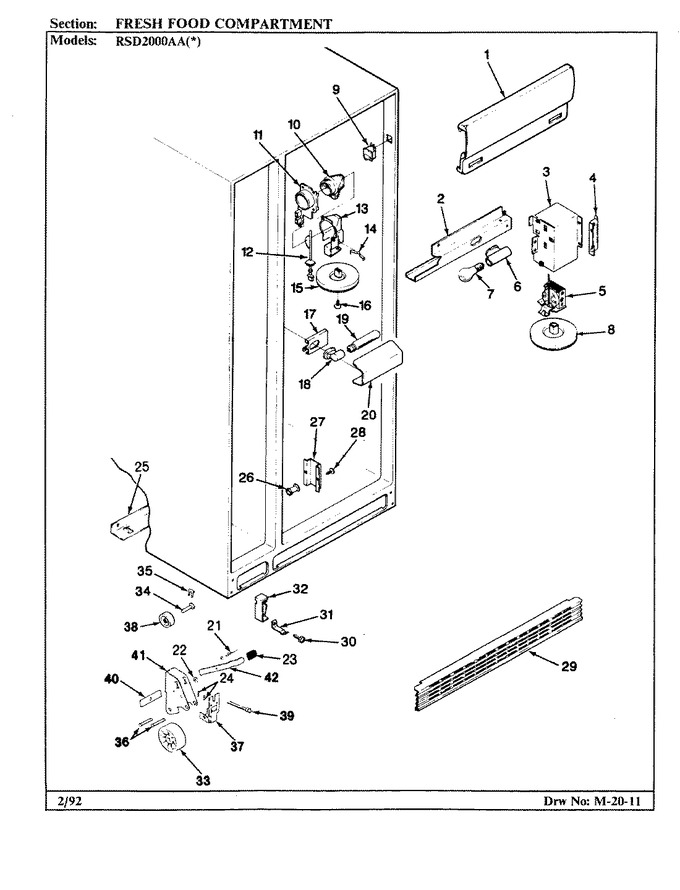

04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Ice Maker Kit (rae3100aax)


08 - Shelves & Accessories


09 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67113-3		Shield, Light		Appelez-nous	-
1	67476-3		Insert, Light Shield		Appelez-nous	-
2	55042-2		Clip		Appelez-nous	-
2	67188-1		Light Housing		Appelez-nous	-
2	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
3	67126-1		Housing, Temperature Control		Appelez-nous	-
4	67125-1		Support, Light Shield		Appelez-nous	-
4	401012-1		Screw, Control Mounting		Appelez-nous	-
5	69694-6		Control, Temperature				$ 103.47
6	29813-1		Socket, Light		Appelez-nous	-
7	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
8	67145-1		Knob, Control		Appelez-nous	-
9	W11384469		Switch, Light   (Replaces: 66987-1)			Immediately	$ 33.51
10	58767-1		Insulation, Housing		Appelez-nous	-
11	67351-1		Orifice, Frz. Control (inlet)		Appelez-nous	-
12	67609-1		Damper, Frz. Control		Appelez-nous	-
13	67354-1		Housing, Frz. Control		Appelez-nous	-
14	52648-1		Spring, Baffle		Appelez-nous	-
15	67145-2		Knob, Control		Appelez-nous	-
16	400001-1		Screw		Appelez-nous	-
17	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
17	67243-1		Base, Light (meat)		Appelez-nous	-
17	67408-1		Wire Harness, Waist		Appelez-nous	-
18	29814-2		Receptacle, Light		Appelez-nous	-
19	20174-6		Bulb, Light		Appelez-nous	-
19	401012-1		Screw, Control Mounting		Appelez-nous	-
20	67242-1		Shield, Light		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	420003-905		Lockwasher		Appelez-nous	-
23	67528-1		Handle, Lock Lever		Appelez-nous	-
24	62581-1		Clip, Retaining Wheel (rear)		Appelez-nous	-
25	67255-1		Support Rail		Appelez-nous	-
25	3400518		Screw   (Replaces: 65275-42)				$ 11.68
26	67684-1		Tunnel, Air Return		Appelez-nous	-
26	67837-1		Insulation, Air Return		Appelez-nous	-
27	62128-1		Air Deflector		Appelez-nous	-
28	28013-2		Rivet, Air Tunnel		Appelez-nous	-
29	67023-7		Grill, Kickplate		Appelez-nous	-
30	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
31	67259-1		Clip, Kickplate		Appelez-nous	-
32	67854-1		End Cap (r)		Appelez-nous	-
32	67854-2		End Cap (l)		Appelez-nous	-
33	67455-1		Wheel Front		Appelez-nous	-
34	62580-2		Axle		Appelez-nous	-
35	62581-1		Clip, Retaining Wheel (rear)		Appelez-nous	-
36	67529-1		Axle Wheel		Appelez-nous	-
37	67280-1		Faceplate, Bracket		Appelez-nous	-
37	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
38	67455-2		Wheel, Roller		Appelez-nous	-
39	56487-2		Screw, Wheel Adjustment		Appelez-nous	-
40	59101-1		Tapping Plate, Wheel		Appelez-nous	-
41	67806-1		Bracket, Wheel		Appelez-nous	-
42	67232-1		Lever, Wheel Lock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
