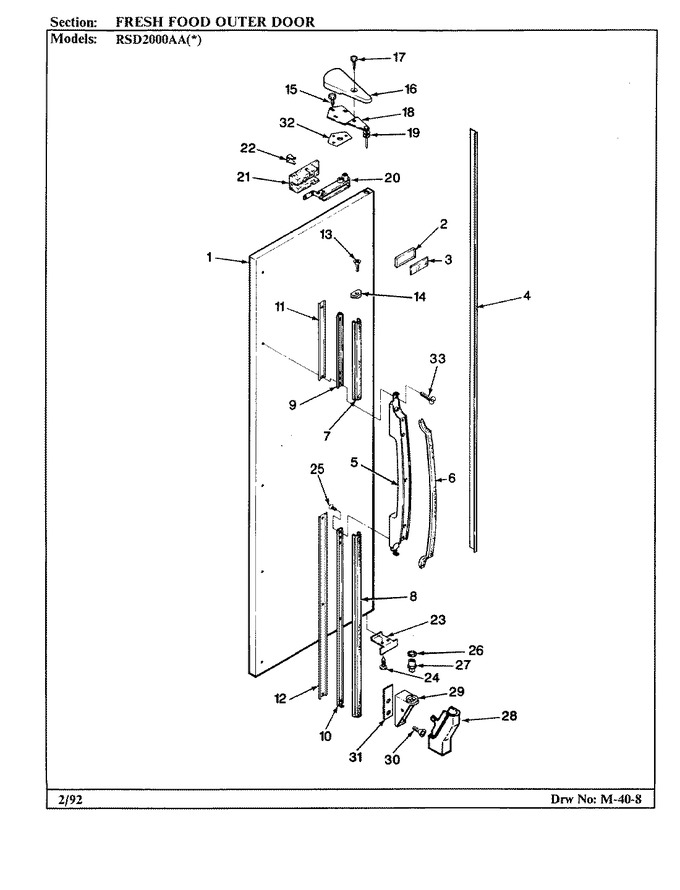

06 - Fresh Food Outer Door


07 - Ice Maker Kit (rae3100aax)


08 - Shelves & Accessories


09 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72041-13-WW		Panel, F.f. Door (wht)		Appelez-nous	-
2	67673-1		Bezel, Nameplate		Appelez-nous	-
3	67194-1		Insert, Nameplate		Appelez-nous	-
4	66651-4		Trim, Door		Appelez-nous	-
5	67385-1		Shim, Handle		Appelez-nous	-
5	67151-1		Handle, Door		Appelez-nous	-
6	67882-1		Insert, Handle (blk)		Appelez-nous	-
6	65275-44		Screw		Appelez-nous	-
7	67155-6		Trim, Extension Upper		Appelez-nous	-
8	67155-7		Trim, Extension Lower		Appelez-nous	-
9	67156-1		Bracket, Handle Upper		Appelez-nous	-
10	67156-2		Bracket, Handle Lower		Appelez-nous	-
11	67299-6		Shim, Trim Lock		Appelez-nous	-
12	67299-7		Shim, Trim Lock		Appelez-nous	-
13	414004-1		Screw		Appelez-nous	-
14	67380-3		Endcap, Handle		Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
16	67229-4		Cover, Upper Hinge(wht.)		Appelez-nous	-
17	403060-1		Screw, Hinge Cover		Appelez-nous	-
18	67456-4		Hinge, Top		Appelez-nous	-
19	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
20	54485-2		Door Closure		Appelez-nous	-
21	52613-1		Insulation, Closer		Appelez-nous	-
22	52614-1		Bracket, Closer		Appelez-nous	-
23	69022-1		Stop, Door		Appelez-nous	-
24	65275-48		Screw		Appelez-nous	-
24	67386-1		Clip, Handle		Appelez-nous	-
25	65275-31		Screw, Bracket To Handle		Appelez-nous	-
26	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
27	68977-1		Pin, Hinge		Appelez-nous	-
28	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
29	68975-2		Hinge, Lower		Appelez-nous	-
30	65275-51		Screw, Lower Hinge		Appelez-nous	-
31	69031-1		Shim		Appelez-nous	-
31	65275-59		Screw		Appelez-nous	-
31	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
32	65031-1		Shim, Upper Hinge		Appelez-nous	-
33	66799-3		Clip, Handle Screw		Appelez-nous	-
33	65275-29		Screw,handle Bottom (hex Head)		Appelez-nous	-
