Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 69245-1 Liner, Frz. Door 12 Appelez-nous -
2 70024-1 Gasket 12 Appelez-nous -
3 69992-5 Retainer, Gasket 12 Appelez-nous -
4 69992-1 Retainer, Gasket 12 Appelez-nous -
5 65275-5 Screw 12 Appelez-nous -
6 69870-5 Front Assy, Pickoff 12 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

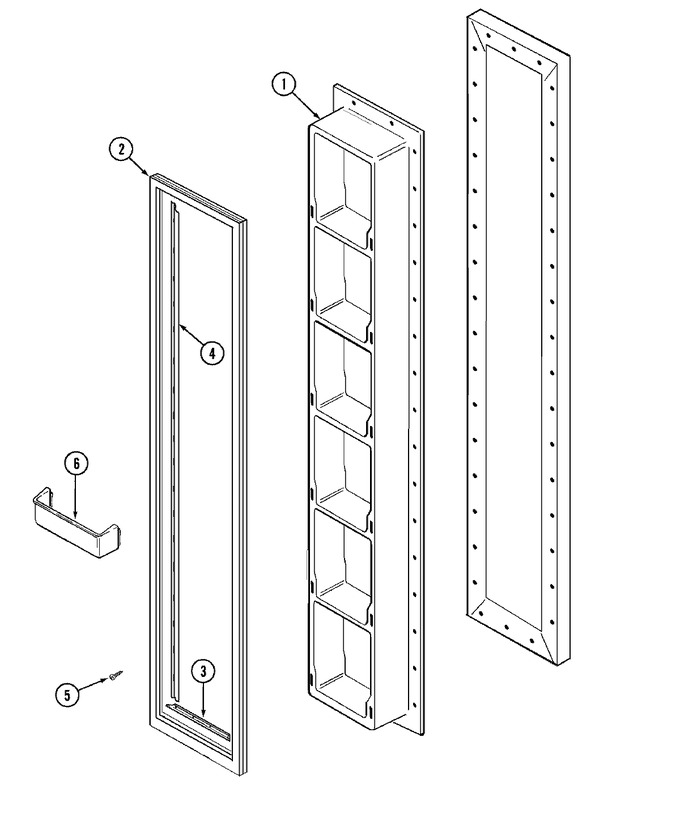

Diagram for RSD2000DAM
