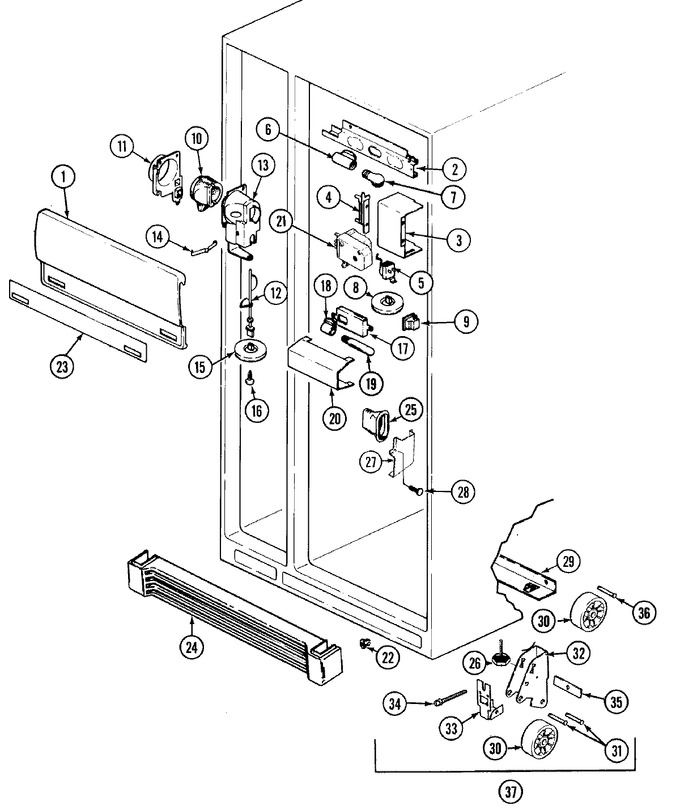

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67113-3 | Shield, Light | 12 |
|
- | ||||
| 2 | WP489478 | Screw (Replaces: 400017-1) | 12 |
|
$ 6.98 | ||||
| 2 | 67751-1 | Light Housing | 12 |
|
- | ||||
| 3 | 70178-1 | Housing, Temperature Control | 12 |
|
- | ||||
| 3 | WP489478 | Screw (Replaces: 400017-1) | 12 |
|
$ 6.98 | ||||
| 4 | 67125-1 | Support, Light Shield | 12 |
|
- | ||||
| 5 | WP489399 | Screw (Replaces: 401024-1) | 12 |
|
$ 6.26 | ||||
| 5 | WP61001673 | Control, Temperature (Replaces: 69694-3) | 12 |
|
Immediately | $ 144.29 | |||
| 6 | 29813-1 | Socket, Light | 12 |
|
- | ||||
| 7 | W11679940 | Bulb, Light (Replaces: 31956-1) | 12 |
|
Immediately | $ 10.17 | |||
| 8 | 67145-5 | Knob, Control | 12 |
|
- | ||||
| 9 | W11384469 | Switch, Light (Replaces: 66987-1) | 12 |
|
Immediately | $ 33.51 | |||
| 10 | 58767-1 | Insulation, Housing | 12 |
|
- | ||||
| 11 | 67351-1 | Orifice, Frz. Control (inlet) | 12 |
|
- | ||||
| 12 | 67355-1 | Damper, Frz. Control | 12 |
|
- | ||||
| 13 | 67354-1 | Housing, Frz. Control | 12 |
|
- | ||||
| 13 | 400053-1 | Screw | 12 |
|
- | ||||
| 14 | 52648-1 | Spring, Baffle | 12 |
|
- | ||||
| 15 | 67145-6 | Knob, Control | 12 |
|
- | ||||
| 16 | 400001-1 | Screw | 12 |
|
- | ||||
| 17 | 67243-1 | Base, Light (meat) | 12 |
|
- | ||||
| 17 | WP489478 | Screw (Replaces: 400017-1) | 12 |
|
$ 6.98 | ||||
| 18 | 68974-3 | Receptacle, Bulb | 12 |
|
- | ||||
| 19 | 20174-6 | Bulb, Light | 12 |
|
- | ||||
| 20 | 67242-1 | Shield, Light | 12 |
|
- | ||||
| 21 | 405007-1 | Screw | 12 |
|
- | ||||
| 21 | WP68233-3 | Timer, Defrost (Replaces: 68233-3) | 12 |
|
Immediately | $ 139.32 | |||
| 22 | 70285-1 | Clip, Kickplate | 12 |
|
- | ||||
| 23 | 67476-9 | Insert, Light Shield | 12 |
|
- | ||||
| 24 | 70288-4 | Kickplate W/clips (alm) | 12 |
|
- | ||||
| 25 | 67684-1 | Tunnel, Air Return | 12 |
|
- | ||||
| 26 | W11117769 | Leg, Leveling (Replaces: 68664-2) | 12 |
|
Immediately | $ 16.61 | |||
| 27 | 69982-1 | Cover, Air Return | 12 |
|
- | ||||
| 28 | 28013-2 | Rivet, Air Tunnel | 12 |
|
- | ||||
| 29 | 3400518 | Screw (Replaces: 65275-42) | 12 |
|
$ 11.68 | ||||
| 29 | 61001030 | Rail, Horizontal Support | 12 |
|
- | ||||
| 30 | 69812-1 | Wheel | 12 |
|
- | ||||
| 31 | 64965-1 | Pin, Wheel | 12 |
|
- | ||||
| 32 | 67806-2 | Bracket, Wheel | 12 |
|
- | ||||
| 32 | WP33002917 | Screw (Replaces: 65275-1) | 12 |
|
Immediately | $ 6.90 | |||
| 33 | 70230-1 | Faceplate, Bracket | 12 |
|
- | ||||
| 34 | 61001126 | Screw, Wheel Adjustment | 12 |
|
- | ||||
| 35 | 59101-1 | Tapping Plate, Wheel | 12 |
|
- | ||||
| 36 | 64965-3 | Pin, Wheel (rear) | 12 |
|
- | ||||
| 37 | 61001108 | Wheel Assy. | 12 |
|
- |
